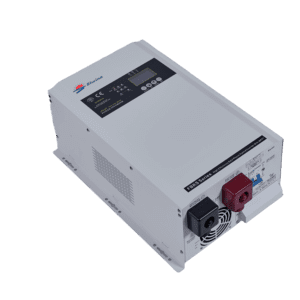

8KW, 10KW and 12KW transformer based pure sine wave splilt phase inverter Dual AC Output 110VAC 220VAC /120VAC 240VAC , With an efficiency of up to 99%, the MPPT solar controller maximizes the utilization of solar panels, saving energy costs. provide two separate output phases, mimicking the power supply in residential settings. It’s ideal for homes with 120/240V split-phase systems, ensuring compatibility and efficiency.
| color | White/blue/Green/orange |
|---|---|
| AC input | 110VAC/220VAC/120VAC/240VAC |
| AC output | 110VAC 220VAC or 120VAC 240VAC |
| DC Voltage（Battery ） | 48VDC or 96VDC |
This 4KW 5kw 6kw pure sine wave split-phase hybrid inverter is a versatile and efficient power solution designed for applications in the United States and South American countries: Colombia, Venezuela, Puerto Rico, Haiti, Dominica, Ecuador, El Salvador and other countries. With dual-phase outputs of 110vac and 220vac or 120vac and 240vac, along with a highly efficient MPPT solar controller and AC charging capability, this inverter offers several advantages for a wide range of applications.
Applications and Advantages
1. Wide Range of Applications: This split-phase hybrid inverter is suitable for various settings, including residential, commercial, and industrial applications. It provides power for a variety of devices and facilities, making it a versatile solution for different power needs.
2. Highly Efficient MPPT Solar Controller: The inverter is equipped with a highly efficient MPPT solar controller, which has an efficiency of up to 99%. This controller maximizes the utilization of solar panels, saving energy costs and maximizing the power generated from the solar system.
3. Dual-Phase Outputs: The dual-phase output design of this inverter offers flexible power output options. It can choose between 110vac/120vac or 220vac/240vac output voltage, depending on the electrical system configuration and requirements. This flexibility makes it suitable for different power needs and ensures compatibility with various electrical systems.
4. 110vac/220vac or 120vac/240vac Outputs: This inverter is capable of simultaneously outputting 110vac and 220vac voltages, meeting the voltage standards of different regions. Whether you need to power devices that require 110vac or 220vac, this inverter has you covered, ensuring compatibility with various electrical standards.
5. Pure Sine Wave Output: The inverter provides a pure sine wave output, which is essential for sensitive electronic devices. The pure sine wave output ensures the normal and stable operation of these devices, protecting them from potential damage caused by unstable or distorted power.
6. AC Charging Capability: The inverter has AC charging capability, allowing it to charge its internal batteries via AC power. This feature ensures timely charging of backup power sources, providing a reliable and continuous power supply even during extended power outages or in off-grid locations.The built-in AC charging feature adds convenience and flexibility, allowing users to charge their batteries directly from the inverter.
7. Comprehensive Protection Features: The inverter is equipped with comprehensive protection features, including overload protection, short-circuit protection, over-voltage protection, under-voltage protection, over-temperature protection, and more. These protection features ensure the safe operation of the inverter and the devices powered by it, protecting them from potential electrical hazards.
8. Suitability for the United States and South America: This split-phase hybrid inverter is specifically designed to meet the electrical standards and environmental requirements of the United States and South America. It ensures its applicability and reliability in these regions, providing users with a superior user experience and economic benefits.
8. LCD Interface: The LCD display on our inverters provides a convenient way to monitor and control your system. It displays AC input and output voltage and frequency, battery voltage and capacity, load power, solar voltage and current, and more. You can easily switch between using city power or solar power to charge the battery, ensuring continuous power supply.
9. Programmable Operations: Our inverters offer full programmability, with over 23 customizable features. You can adjust input/output voltage range, battery charging current, and other settings to suit your specific needs.
Why Choose Our Products?
.Quality Assurance: Our products undergo rigorous quality control checks to ensure they meet the highest standards of reliability and performance.
.Technical Support: We offer comprehensive technical support to assist you in selecting the right products for your customers’ needs and to resolve any issues that may arise.
.Customization Options: We offer OEM and ODM services to meet specific design requirements, allowing you to tailor our products to your customers’ exact specifications.
With our hybrid inverters, you can enjoy a stable and reliable power supply, backed by comprehensive protection features and optional UPS functionality. Choose the power capacity that suits your requirements and take advantage of the high efficiency MPPT solar controllers for optimal performance. Experience the reliability and versatility of our hybrid inverters for your power needs.
In conclusion, this 6kw 8kw 12kw pure sine wave split-phase hybrid inverter offers a wide range of applications and advantages. Its highly efficient MPPT solar controller, dual-phase outputs, pure sine wave output, AC charging capability, comprehensive protection features, and suitability for the United States and South America make it an excellent choice for users in these regions. Whether for residential, commercial, or industrial applications, this inverter provides a reliable and efficient power solution, ensuring a superior user experience and economic benefits.
Product Technical Data Sheet
| Model | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Rated capacity | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 24000W | 30000W | 36000W | ||
| Commercial Power range | 110VAC:83V-137VAC 120VAC:90V-150V | 220VAC:176V-264VAC | ||||||||||
| 220VAC:165V-275VAC 240VAC:173V-287V | 240VAC:184V-276V | |||||||||||
| AC frequency range | 45-65HZ | |||||||||||
| Solar | MPPT Solar controller | 30A | 30A/50A | 50A/60A/80A | 100A /120A | |||||||
| Solar input | 360W/720W/1440W | 1200W/2400W/3840W | 488W/5760W/9600W/11520W | |||||||||
| Battery | Type | lead-acid battery GEL battery (lithium battery) | ||||||||||
| DC Voltage | 12 VDC /24VDC | 24VDC/48VDC | 48VDC/96VDC | |||||||||
| Input voltage range | 12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC | |||||||||||
| Floating charge set | 12.9 ～ 13.6 V(1PCS battery) can be set | |||||||||||
| Low voltage restored | 12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC | |||||||||||
| Low voltage shutdown set | 12VDC:10-10.9V 24VDC:20-21.8V 48VDC:40-43.6V 96VDC:80V-87.2V | |||||||||||
| over voltage protection | 12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V | |||||||||||
| over voltage alarm | 12VDC:15VDC 24VDC:30V 48VDC:60V | |||||||||||
| Charger | AC charging | 5A-30A(40A, 50A, 60A,70A Optional） | ||||||||||
| Output | Capable of starting electric motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | ||||||
| voltage range（VAC） | 110VAC/220VAC ,120VAC/240VAC±10%（Auto-sensing） | 110VAC/220VAC ,120VAC/240VAC±10%（Auto-sensing） | ||||||||||
| Transfer time | Typical：5ms(Including detection time) | |||||||||||
| Temperature protection | ≥85℃ alarm ≥90℃ machine shut off | |||||||||||
| overload | IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load. | |||||||||||
| Waveform | Pure sine wave | |||||||||||
| Frequency | ||||||||||||
| Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5 | ||||||||||||
| Output frequency range | Tracking automatically | |||||||||||
| (electric supply mode) | ||||||||||||
| temperature | Operating Temperature | 0℃~70℃ | ||||||||||
| Thermal method | Cooling fan in intelligent control≤42℃ fan rotates slowly to ≥45℃ fan rotates fast | |||||||||||
| Appearance | External Size(mm) | 475*280*197mm | 630*280*197mm | 720*310*250mm | ||||||||
| （L*W*H） | ||||||||||||
| Gross Size(mm) | 540*330*240mm | 710*320*240mm | 780*350*310mm | |||||||||
| （L*W*H） | ||||||||||||
| Net weight(kg) | 14 | 15 | 18 | 20 | 28 | 29 | 30.5 | 52 | 56 | 60 | ||
| Gross weight(kg) | 16 | 17 | 24.5 | 23.5 | 31 | 32 | 33.5 | 56 | 60 | 64 | ||
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample orders/trial orders for testing. You can experience the quality and performance of our products before making a larger investment.
Q2: When will you deliver the goods?
A: For sample orders, we typically deliver within 3-5 working days. For quantity orders, it may take 7-15 working days after receiving the deposit payment. We strive to deliver your order promptly and efficiently.
Q3: Do you offer a guarantee for your solar products?
A: Yes, we offer an 18-month guarantee for our inverters and inverter-related products, including solar generators and solar inverters.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for power inverters, solar inverters, Hybrid inverter ,MPPT solar controllers, solar generators. Simply send us your detailed request, and our sales specialist will provide you with the best quote tailored to your needs.
