| AC input | 110VAC/220VAC/120VAC/240VAC |
|---|---|
| AC output | 110VAC/120VAC/220VAC/230VAC/240VAC(option) |
| DC Voltage（Battery ） | 12VDC or 24VDC（option) |
| color | White/blue/Green/orange |

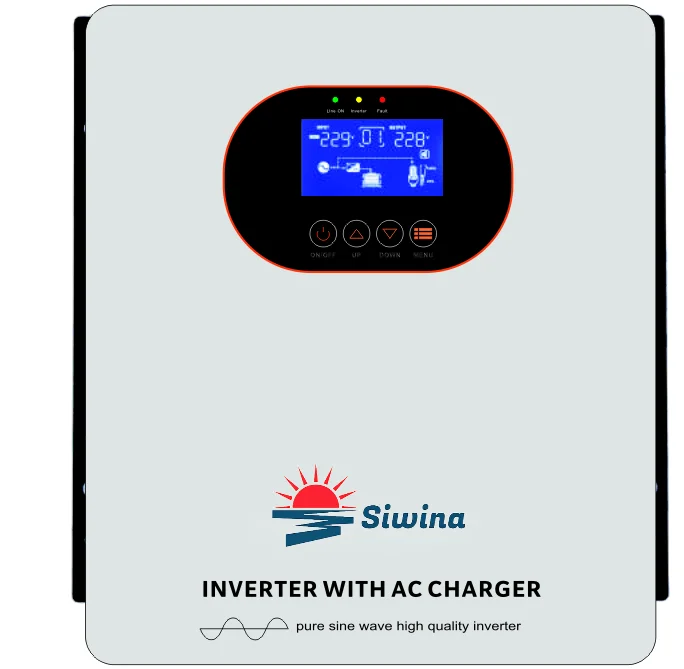

Features of Pure Sine Wave Inverters
One of the standout features of a pure sine wave inverter is its compatibility with various battery types, including lithium, gel, lead-acid, and solid-state batteries. This versatility ensures that you can use it for different applications and environments. Additionally, these inverters offer high-current charging with an adjustable charging current range from 5-30A, allowing fast and efficient battery charging to ensure full battery capacity.
Voltage Settings and Regulation
Pure sine wave inverters come with adjustable voltage settings, allowing you to set the highest battery voltage and the lowest shutdown voltage. This feature accommodates different battery charging requirements, making it highly adaptable. Furthermore, the inverter is equipped with voltage regulation functionality within the 1000W to 1500W power range for the home, ensuring stable output and consistent performance in various environments.
Multiple Operating Modes
These inverters offer six operating modes, including grid priority, energy-saving mode, battery priority, unattended mode, and solar priority. This range of options caters to diverse operational needs, providing flexibility and reliability. For instance, the energy-saving mode is designed to maximize energy efficiency, while the solar priority mode ensures that solar energy is utilized to its fullest potential.
Advantages of Pure Sine Wave Solar Inverters
One of the primary benefits of using a pure sine wave inverter is energy independence. By harnessing solar energy effectively, these inverters reduce the need for expensive diesel power generation or costly grid electricity, resulting in significant energy savings. They also provide a stable and reliable power supply, ensuring uninterrupted power with a pure sine wave output. Additionally, these inverters are environmentally friendly, lowering carbon emissions and promoting environmental conservation through the use of solar power generation.

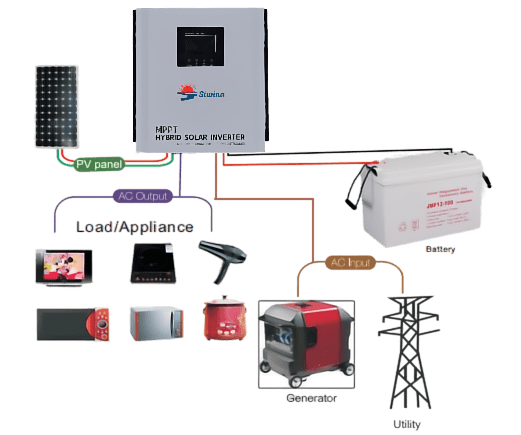

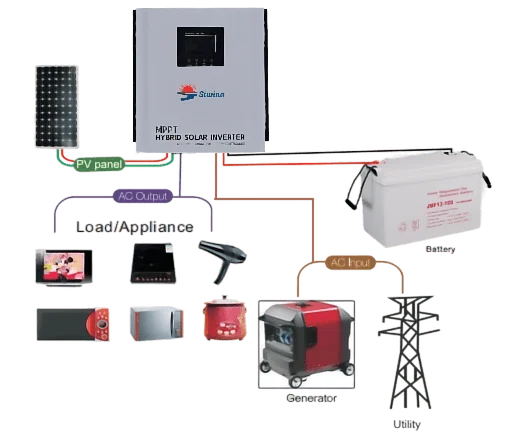

Application of 1KW 1.5KW Pure Sine Wave Solar Inverters
Appliance Compatibility:
Pure sine wave solar inverters are versatile and can power a wide range of appliances, including but not limited to:
Home Appliances: Refrigerators, Lights, and televisions.
Office Equipment: Computers, printers, servers, and networking equipment.
Industrial Equipment: Motors, pumps, compressors, and other machinery.
Medical Devices: Ventilators, CPAP machines, and other critical medical equipment.
Recreational Vehicles (RVs): All onboard electrical systems, including lighting, entertainment, and kitchen appliances.
Outdoor and Emergency Use: Power tools, portable lighting, and communication devices during camping or in emergency situations.
Country and Region Compatibility:
Our pure sine wave solar inverters are designed to be used in various countries and regions, with models that support different voltage and frequency standards:
North America: Compatible with 110V/120V and 60Hz electrical systems.
Europe: Compatible with 220V/230V and 50Hz electrical systems.
Asia: Compatible with both 220V/230V and 110V/120V electrical systems, depending on the country.
Australia and New Zealand: Compatible with 230V and 50Hz electrical systems.
Africa: Compatible with both 220V/230V and 110V/120V electrical systems, suitable for various regions within the continent.
South America: Compatible with both 220V/230V and 110V/120V electrical systems, depending on the country.
Our pure sine wave inverters are equipped with advanced features to ensure stable and reliable power output, making them suitable for use in any country with specific voltage and frequency requirements. With our inverters, you can rest assured that your appliances and equipment will operate efficiently and safely, no matter where you are in the world.
. Programmable Operations: Our inverters offer full programmability, with over 23 customizable features. You can adjust input/output voltage range, battery charging current, and other settings to suit your specific needs.
With our hybrid inverters, you can enjoy a stable and reliable power supply, backed by comprehensive protection features and optional UPS functionality. Choose the power capacity that suits your requirements and take advantage of the high-efficiency MPPT solar controllers for optimal performance. Experience the reliability and versatility of our hybrid inverters for your power needs.
Why Choose Our Products?
1. Quality Assurance: Our products undergo rigorous quality control checks to ensure they meet the highest standards of reliability and performance.dedicated to using the highest quality materials and components in our products. We believe in the importance of quality and carefully select raw materials while adhering to strict quality control measures. Our commitment to excellence is reflected in our certifications, including CE, IEC, FCC, and technical patent design certificates.
2. Technical Support:We offer comprehensive technical support to assist you in selecting the right products for your customers’ needs and to resolve any issues that may arise.
3. Customization Options: We offer OEM and ODM services to meet specific design requirements, allowing you to tailor our products to your customers’ exact specifications.
Don’t miss out on this opportunity to offer your customers the best inverter and MPPT solar controller solutions on the market. Partner with us today and elevate your business to new heights!
Technical Data Sheet：
| Model: | 300W | 500W | 700W | 800W | 1000W | 1200W | 1500W | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Rated power: | 300W | 500W | 700W | 800W | 1000W | 1200W | 1500W | |||||
| Peak power: | 600W | 1000W | 1400W | 1600W | 2000W | 2400W | 3000W | |||||
| AC input voltage range: | 70V-135VAC(110VAC/120VAC) 140V-275VAC(220VAC / 230VAC ) | |||||||||||
| Input frequency range: | 45-65HZ | |||||||||||
| Battery voltage: | 12VDC /24VDC | 24VDC | ||||||||||
| DC voltage： | 12VDC:10.5-15VDC/ 24VDC:21-30VDC | |||||||||||
| solar controller： | 10A | 20A | 30A | |||||||||
| Solar input： | 120W | 240W/480W | 360W/720W | |||||||||
| Battery undervoltage alarm: | 10.5VDC /21VDC | |||||||||||
| Battery undervoltage protection: | 10VDC /20VDC | |||||||||||
| Battery overvoltage protection: | 17V±0.5V /34V±0.5V | |||||||||||
| Voltage overvoltage alarm: | 15V-16VDC/30V-32VDC | |||||||||||
| Overload protection: | Rated power of 110% or more | |||||||||||
| Temperature protection: | ≥ 85 ℃ alarm, ≥ 90 ℃ off the machine | |||||||||||
| Inverter output voltage: | 110VAC/120VAC/ 220VAC/230VAC±2% | |||||||||||
| Inverter output frequency: | 50/60HZ±10% | |||||||||||
| Inverter output waveform: | pure sine wave | |||||||||||
| AC output voltage range: | AVR output 110VAC/120VAC/ 220VAC/230VAC±10% | |||||||||||
| Output frequency range: | Automatic tracking | |||||||||||
| Conversion time: | 5ms-10ms | |||||||||||
| Cooling method: | Intelligent fan control, ≤ 42 ℃ fan slow working , ≥ 45 ℃ fan high working . | |||||||||||
| AC Charging current: | 20A | |||||||||||
Working mode selection: | Free to choose(SET) 01: AC priority/City power priority: When city power is available, the inverter will work AC output, city power will supply power to appliances.The city power and sun power will charges 2 kinds power to battery. When city power failed, sun power will charges the battery and use battery power(solar power) to take the appliances. 02: energy saving mode load power ≤ 10% off the machine, ≥ 11% -100% turn on 03: Battery priority When it have sun power, sun power charges the battery and supply power to the appliances. When it does not have sun power or battery voltage ≤10.5V, inverter will automatic use city power to take the appliances, When battery voltage reach 13V inverter will use use battery power and sun power. | |||||||||||
| External Size(mm) D×W×H | 290*310*135mm | |||||||||||
| Packing Size(mm) D×W×H | 415*380*225mm | |||||||||||
| Net Weight(kg) | 11 | 13 | 14 | 16 | 18 | 20 | 22 | |||||
| Gross Weight(kg) | 13 | 15 | 16 | 18 | 20 | 22 | 24 | |||||
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample orders/trial orders for testing. You can experience the quality and performance of our products before making a larger investment.
Q2: When will you deliver the goods?
A: For sample orders, we typically deliver within 3-5 working days. For quantity orders, it may take 7-15 working days after receiving the deposit payment. We strive to deliver your order promptly and efficiently.
Q3: Do you offer a guarantee for your solar products?
A: Yes, we offer an 18-month guarantee for our inverters and inverter-related products, including solar generators and solar inverters.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for power inverters, solar inverters, Hybrid inverter ,MPPT solar controllers, solar generators. Simply send us your detailed request, and our sales specialist will provide you with the best quote tailored to your needs.
