Explore our CE-approved heavy-duty 1000W 2000W 3000W pure sine wave low-frequency inverter charger. This power inverter with AC battery charger, and AC auto-transfer switch, achieving a peak DC to AC conversionefficiency exceeding 85%
| color | White/blue/Green/orange |
|---|---|
| AC input | 110VAC/120VAC/220VAC/230VAC/240VAC(option) |
| AC output | 110VAC/120VAC/220VAC/230VAC/240VAC(option) |
| DC Voltage（Battery ） | 12VDC or 24VDC（option) |
Pure Sine Wave Output
Pure sine wave inverters are sophisticated devices designed to convert direct current (DC) from batteries into alternating current (AC) that closely mimics the electricity supplied by utility grids. The output waveform of a pure sine wave inverter is smooth and consistent, exhibiting low harmonic distortion, which means it produces a clean and stable power supply. This characteristic is crucial for the functionality of sensitive electronic devices, as it ensures minimal interference and reduces the risk of damage.

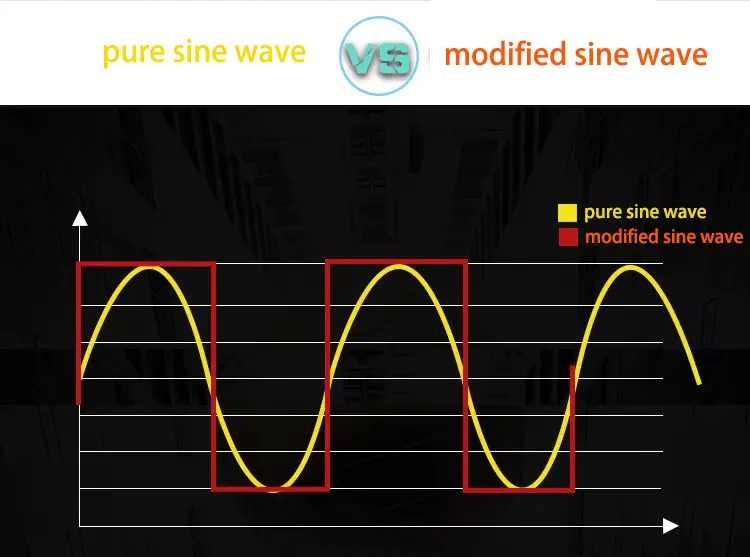

The primary distinction between pure sine wave inverters and their modified sine wave counterparts lies in the quality of the output voltage waveform. While pure sine wave inverters generate a smooth, continuous wave, modified sine wave inverters produce a stepped approximation of a sine wave. This approximation can result in increased harmonic distortion, potentially causing issues such as overheating and inefficiency in certain devices. As a result, pure sine wave inverters are generally preferred for applications requiring high precision and reliability.
In summary, pure sine wave inverters offer superior Their ability to closely replicate utility-supplied electricity makes them indispensable for sensitive electronic devices and high-precision applications. By choosing pure sine wave inverters over modified sine wave options, users can ensure the optimal functioning and durability of their equipment, making them a worthwhile investment in various residential, commercial, and renewable energy scenarios.
Performance and Efficiency Benefits
Pure sine wave inverters offer substantial performance and efficiency benefits, making them an essential component for various applications. One of the primary advantages is their ability to power inductive loads, such as microwave ovens and motors, more effectively. These devices operate more efficiently, running faster, quieter, and cooler when powered by pure sine wave inverters. This improved performance is due to the consistent and smooth wave output, which closely mimics the power supplied by the electric grid.
Inverter with Mains Charging and UPS (DC To AC automatic)Function:

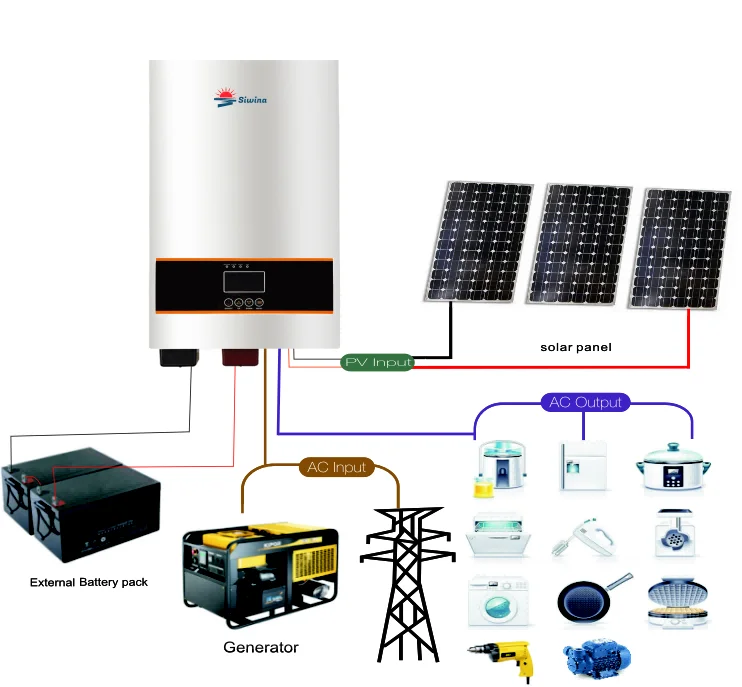

An inverter with a mains charging function serves a dual purpose: it converts DC power from sources such as batteries or solar panels into AC power for household use, and it also charges the batteries using AC power from the grid when available. This feature ensures that your batteries are always charged and ready to provide backup power when needed.
Benefits:
Continuous Power Supply: With mains charging, your batteries can be charged using the grid, ensuring that you have a continuous power supply even during periods of low solar generation or high power demand.
Increased Reliability: By maintaining a charged battery bank, the system can provide a reliable power source during power outages or in areas with unstable electricity supply.
Extended Battery Life: Proper charging and maintenance of batteries through mains charging can extend the overall lifespan of the battery bank, reducing replacement costs and improving system reliability.
Energy Savings: The system can prioritize using stored solar energy and only draw from the grid when necessary, optimizing energy usage and potentially lowering electricity bills.
Flexibility and Convenience: The ability to charge batteries from the grid provides flexibility in energy management and ensures that your power system can adapt to varying conditions and demands.
Backup Power: During grid failures, the charged batteries can provide essential backup power, ensuring critical appliances and systems remain operational.
Efficiency: The inverter can intelligently manage the charging process, ensuring batteries are charged efficiently and safely without overcharging.
Reduced Downtime: Mains charging minimizes the risk of downtime by ensuring that batteries are always charged and ready to take over in case of power interruptions.
An inverter with a mains charging and ups function offers enhanced reliability, efficiency, and flexibility, making it an excellent choice for ensuring a stable and continuous power supply. This feature is particularly beneficial in regions with unreliable electricity or for applications where uninterrupted power is critical.
. Programmable Operations: Our inverters offer full programmability, with over 23 customizable features. You can adjust input/output voltage range, battery charging current, and other settings to suit your specific needs.
With our hybrid inverters, you can enjoy a stable and reliable power supply, backed by comprehensive protection features and optional UPS functionality. Choose the power capacity that suits your requirements and take advantage of the high-efficiency MPPT solar controllers for optimal performance. Experience the reliability and versatility of our hybrid inverters for your power needs.
Why Choose Our Products?
1. Quality Assurance: Our products undergo rigorous quality control checks to ensure they meet the highest standards of reliability and performance.dedicated to using the highest quality materials and components in our products. We believe in the importance of quality and carefully select raw materials while adhering to strict quality control measures. Our commitment to excellence is reflected in our certifications, including CE, IEC, FCC, and technical patent design certificates.
2. Technical Support:We offer comprehensive technical support to assist you in selecting the right products for your customers’ needs and to resolve any issues that may arise.
3. Customization Options: We offer OEM and ODM services to meet specific design requirements, allowing you to tailor our products to your customers’ exact specifications.
Don’t miss out on this opportunity to offer your customers the best inverter and MPPT solar controller solutions on the market. Partner with us today and elevate your business to new heights!
Technical Data Sheet：
| Model | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inverter Input | Rated capacity | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 24000W | 30000W | 36000W | |
| Commercial Power range | 110VAC:83V-137VAC 120VAC:90V-150VAC | 220VAC:176V-264VAC | |||||||||
| 220VAC:165V-275VAC 230VAC:173V-287VAC | 230VAC:184V-276VAC | ||||||||||
| AC frequency range | 45-65HZ | ||||||||||
| Efficiency | >85% | ||||||||||
| MPPT Solar | MPPT Solar controller | 30A / 50A | 50A/60A/80A | 80A /100A/120A | |||||||
| Solar input power | 360W/720W/1200Wv | 1200W/1440W/2400W2880W/3840W | 3840W/4800W/5760W/9600W | ||||||||
| Solar input voltage(max) | 12VDC/24VDC:90V | 12VDC/24VDC:130V 48VDC:160V 96VDC： 280V | |||||||||
| Battery | Type | lead-acid battery GEL battery lithium battery | |||||||||
| DC Voltage | 12VDC /24VDC/48VDC | 24VDC/48VDC | 48VDC/96VDC | ||||||||
| Input voltage range | 12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC | ||||||||||
| Floating charge set | 12V:12.9 ～ 13.6 V 24V:25.8V～27.2V 48V:51.6V～54.4V 96V:103.2V～108.8V | ||||||||||
| Low voltage restored | 12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC | ||||||||||
| Low voltage shutdown set | 12VDC:10-10.9V 24VDC:20-21.8V 48VDC:40-43.6V 96VDC:80V-87.2V | ||||||||||
| over voltage protection | 12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V | ||||||||||
| over voltage alarm | 12VDC:15VDC 24VDC:30V 48VDC:60V | ||||||||||
| AC charging | 5A-35A(40A, 50A, 60A,70A Optional） | ||||||||||
| Inverter Output | Capable of starting electric motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | |||||
| AVR voltage range（VAC） | 110/120/220/230/240±10%（Auto-sensing） | Without | |||||||||
| Power factor | 100% | ||||||||||
| Transfer time | Typical：5ms(Including detection time) | ||||||||||
| Temperature protection | ≥85℃ alarm ≥90℃ machine shut off | ||||||||||
| overload | IPS automatically shut down if overload exceeds 110%-120% of normal value for 30 seconds, IPS automatically resume work if overload comes to rated load. | ||||||||||
| Wave form | Pure sine wave | ||||||||||
| Frequency | Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5 | ||||||||||
| Output frequency range | Tracking automatically | ||||||||||
| (electric supply mode) | |||||||||||
| Protection | Overload, short circuit, battery high and low voltage, AC input high and low voltage protection | ||||||||||
| Conversion method | Interactive | ||||||||||
| temperature | Operating Temperature | 0℃~70℃ | |||||||||
| Thermal method | Cooling fan in intelligent control≤42℃ fan rotates slowly to ≥45℃ fan rotates fast | ||||||||||
| Appearance | External Size(mm) | 510*295*225mm | 680*295*225mm | 765*320*250mm | |||||||
| （L*W*H） | |||||||||||
| Gross Size(mm) | 550*350*255mm | 740*360*275mm | 830*380*310mm | ||||||||
| （L*W*H） | |||||||||||
| Net weight(kg) | 14 | 15 | 18 | 20 | 31 | 34 | 35 | 52 | 54 | 56 | |
| Gross weight(kg) | 16 | 17 | 20 | 22 | 35 | 37 | 38 | 56 | 58 | 60 | |
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample orders/trial orders for testing. You can experience the quality and performance of our products before making a larger investment.
Q2: When will you deliver the goods?
A: For sample orders, we typically deliver within 3-5 working days. For quantity orders, it may take 7-15 working days after receiving the deposit payment. We strive to deliver your order promptly and efficiently.
Q3: Do you offer a guarantee for your solar products?
A: Yes, we offer an 18-month guarantee for our inverters and inverter-related products, including solar generators and solar inverters.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for power inverters, solar inverters, Hybrid inverter ,MPPT solar controllers, solar generators. Simply send us your detailed request, and our sales specialist will provide you with the best quote tailored to your needs.
