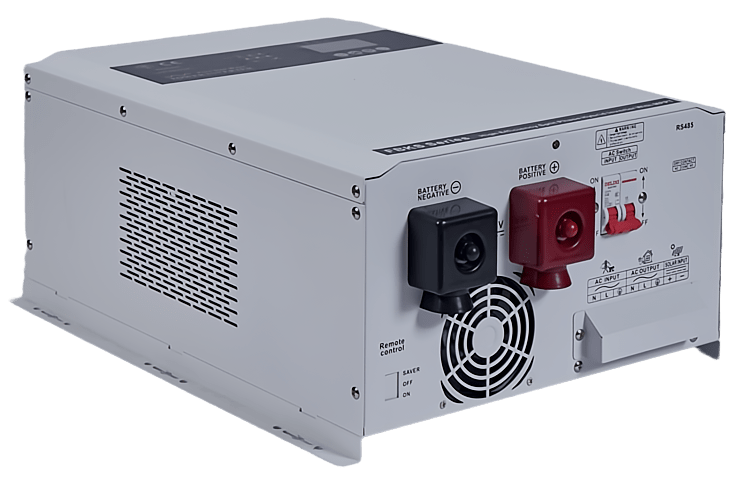

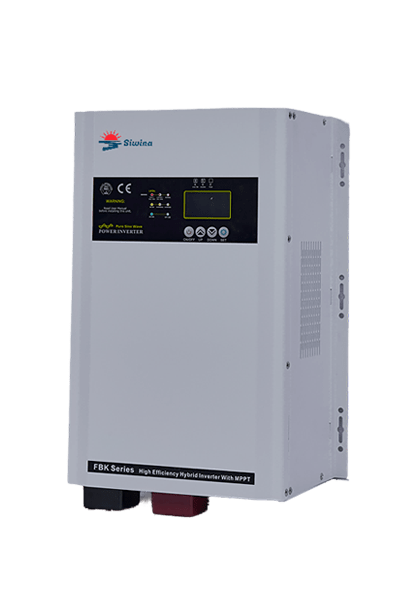

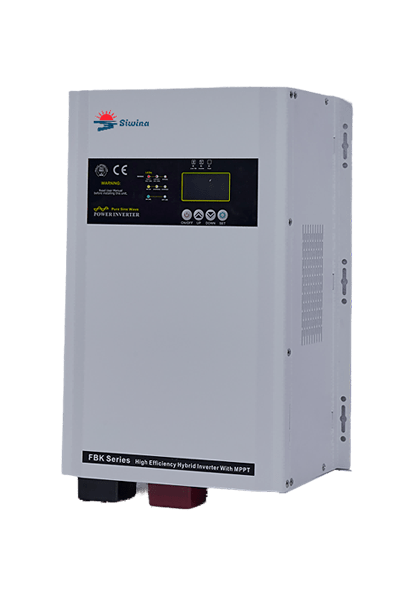

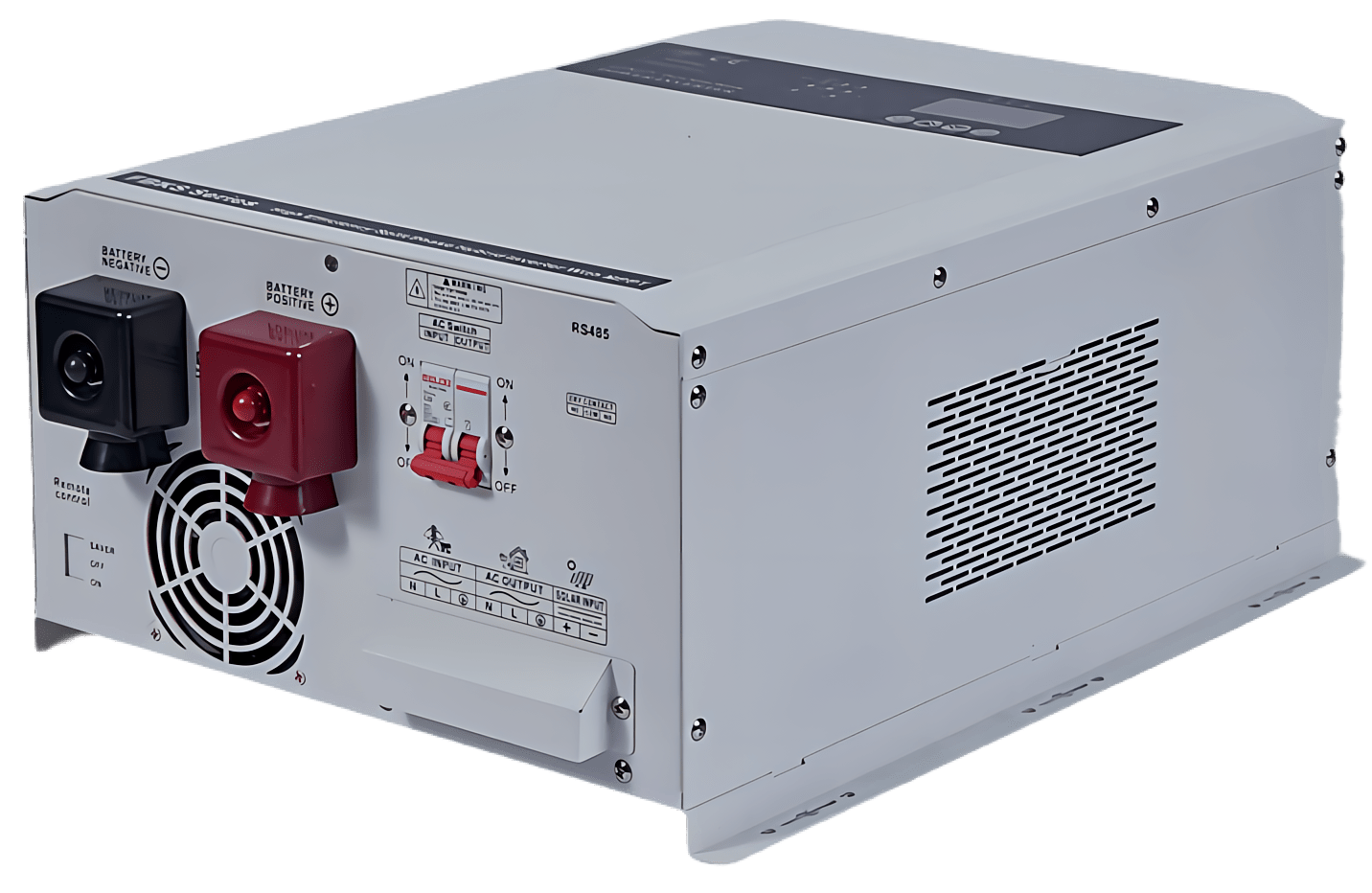

8KW 10KW 12KW Stability and Reliability Hybrid inverter

8KW10KW12KW48VDC 96VDC Stability and Reliability full protection Low-frequency Pure sine wave MPPT Hybrid inverter built-in AC charging and ups function,Suitable for large commercial buildings, factories, large residential buildings and other places that require high-power power supply. They can provide stable and reliable power to these places, ensuring that equipment can still operate normally during power outages.

Additional information

color

White/blue/Green/orange

AC input

110VAC/120VAC/220VAC/230VAC/240VAC(option)

AC output

110VAC/120VAC/220VAC/230VAC/240VAC(option)

DC Voltage(Battery )

48VDC or 96VDC

product details

1.Stability and Reliability:They can adapt well to different types of loads, including inductive loads and capacitive loads, which makes them more flexible in various application scenarios.For example, application scenarios that require continuous power supply, such as hospitals, factories, and data centers.

2.Full Protection Features: With comprehensive protection features, including overload protection, short-circuit protection, over-voltage protection, and more, our inverters ensure the safety of connected devices and the inverter itself.

3.Optional UPS Functionality: The optional UPS functionality allows for uninterrupted power supply, making our inverters ideal for critical applications where downtime is not an option.

4.Built-in AC Charging: The built-in AC charging feature adds convenience and flexibility, allowing users to charge their batteries directly from the inverter.

5.High Efficiency MPPT Solar Controllers: Our MPPT solar controllers boast up to 99% efficiency, maximizing the power output of solar panels and ensuring optimal performance in any environment.

How to choose the appropriate inverter power?

8KW inverter:

.Purpose: 8KW inverter is suitable for medium-sized applications such as small and medium-sized commercial buildings, small factories and medium-sized residential buildings. They can provide stable and reliable power to these places to meet daily power needs.
.Advantages: The 8KW inverter has high power output and can power multiple devices at the same time, making it suitable for places with larger power demands. Their comprehensive protection functions ensure the safe operation of equipment and buildings.

10KW inverter:

.Purpose: 10KW inverter is suitable for large commercial buildings, factories, large residential buildings and other places that require high-power power supply. They can provide stable and reliable power to these places and meet the needs of high-power equipment.
.Advantages: 10KW inverter has higher power output and can meet the needs of large buildings and equipment. Their comprehensive protection features and optional UPS functionality ensure equipment remains operational during power outages.

12KW inverter:

.Purpose: 12KW inverter is suitable for high-power power supply needs of very large buildings, factories and other large facilities. They can provide stable and reliable power to these places and meet the needs of various high-power equipment.
.Advantages: The 12KW inverter has the highest power output and can power multiple high-power devices at the same time to ensure the normal operation of buildings and equipment. Their comprehensive protection features and high-efficiency MPPT solar controllers further enhance their reliability and performance.

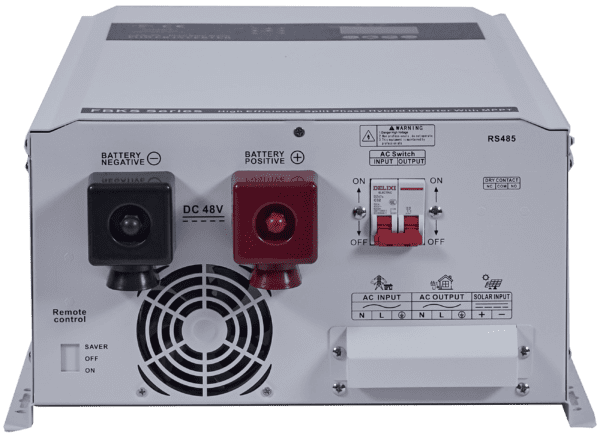

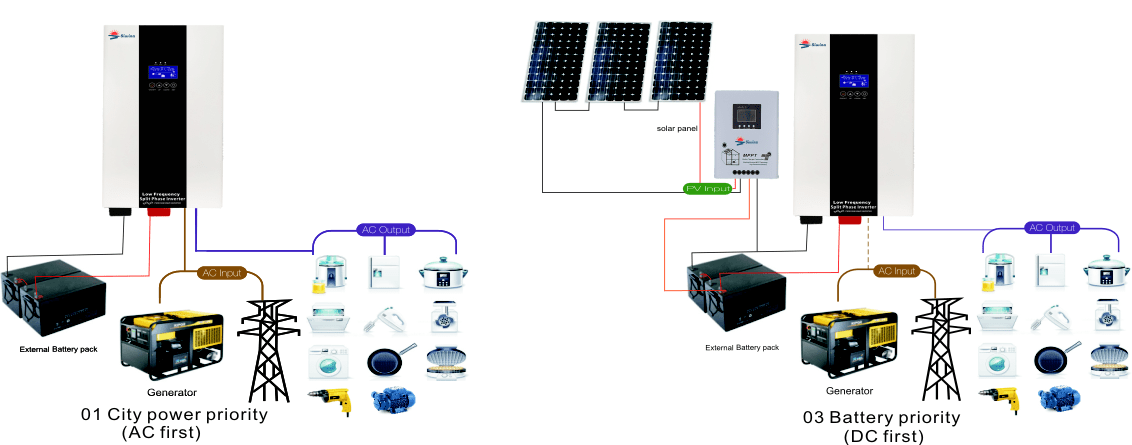

Hybrid inveter working for solar system connection:

low frequency pure sine wave hybrid inverter

With our hybrid inverters, you can enjoy a stable and reliable power supply, backed by comprehensive protection features .
low frequency pure sine wave hybrid inverter

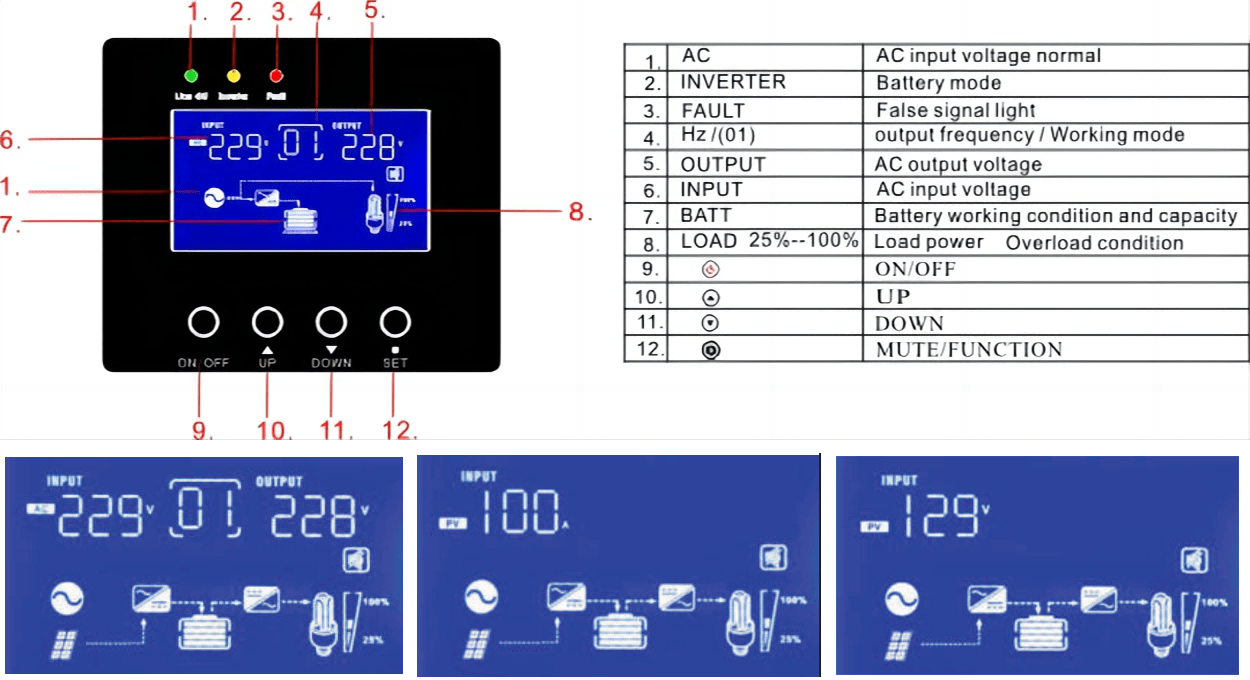

LCD Interface: The LCD display on our inverters provides a convenient way to monitor and control your system. It displays AC input and output voltage and frequency, battery voltage and capacity, load power, solar voltage and current, and more. You can easily switch between using city power or solar power to charge the battery and supply power to the appliance , ensuring continuous power supply.
Programmable Operations: Our inverters offer full programmability, with over 23 customizable features. You can adjust input/output voltage range, battery charging current, and other settings to suit your specific needs.

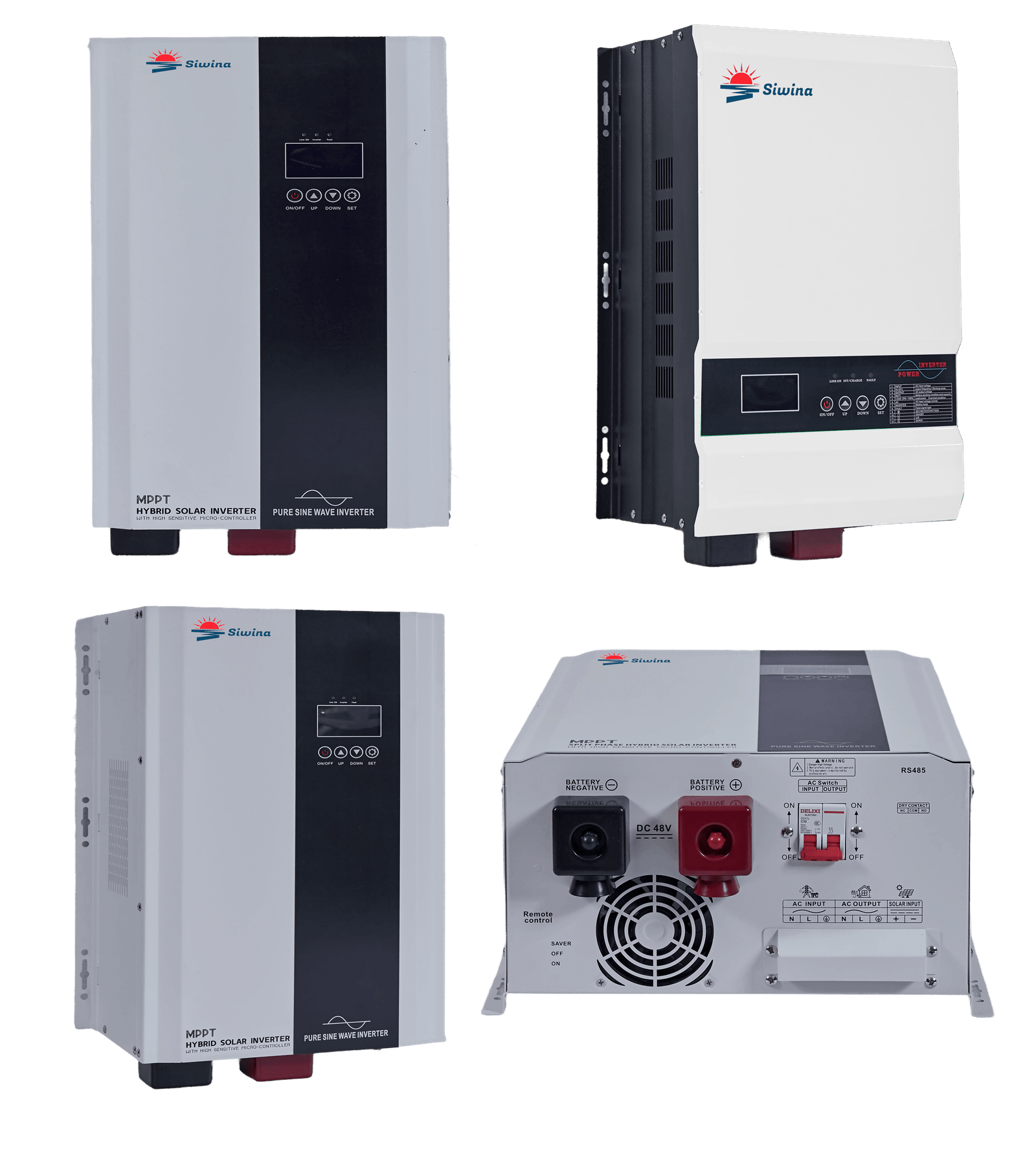

Why Choose Our Products?

low frequency pure sine wave hybrid inverter

8kw 10kw 12kw stability and reliability hybrid inverter
8kw 10kw 12kw stability and reliability hybrid inverter

low frequency pure sine wave hybrid inverter

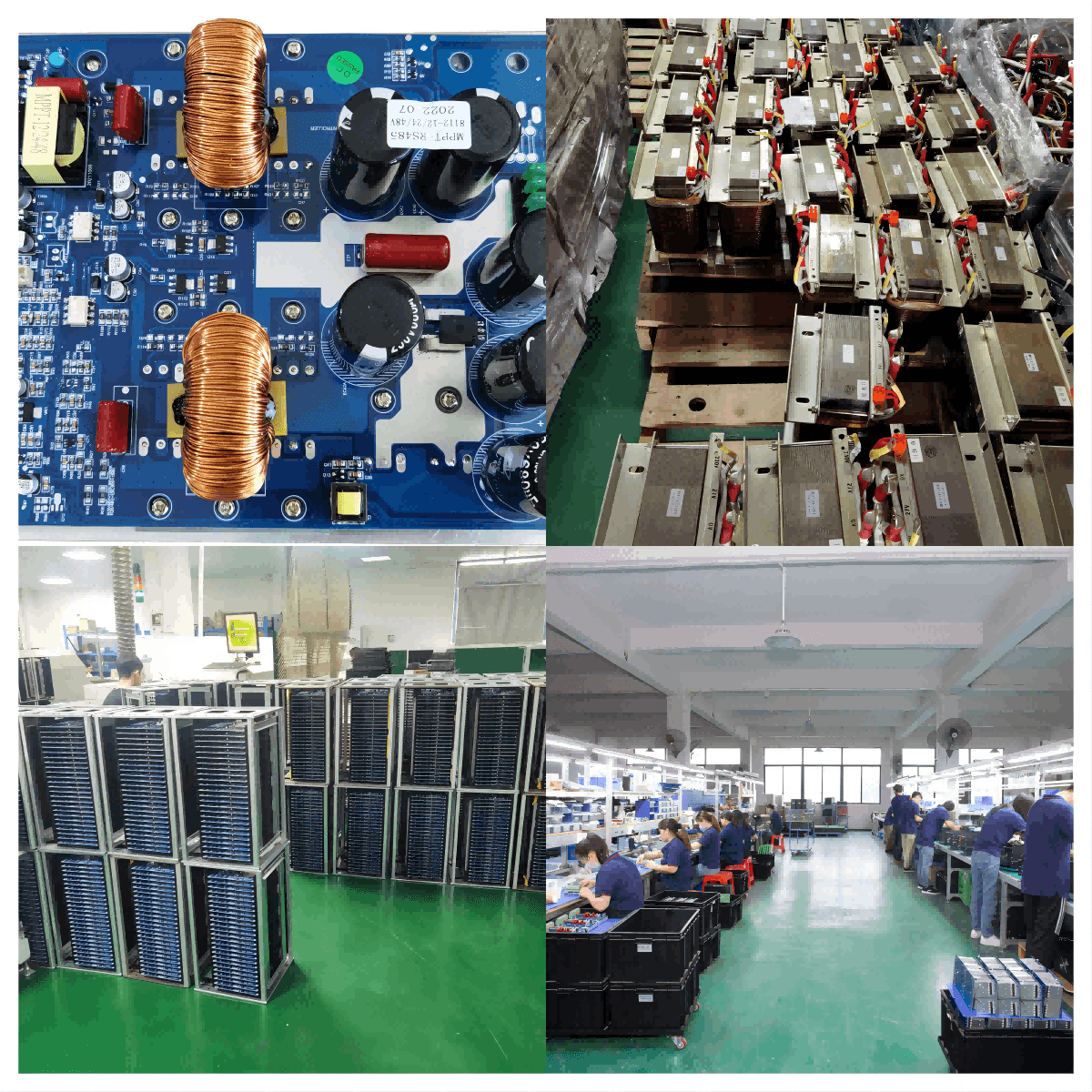

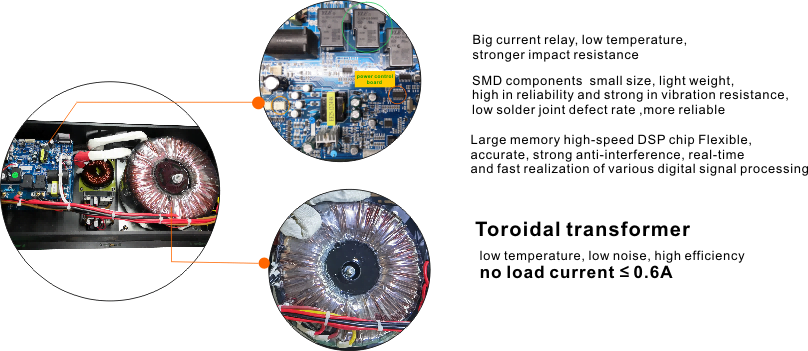

The main components are selected from international brands. All product components are brand new, and old and inferior components are rejected to ensure the quality of the product.

low frequency pure sine wave hybrid inverter

The products have CE, IEC, FCC and other certificates, and the factory has also passed ISO9001 system certification. Multiple certificates ensure the quality of the products and make people feel more at ease.

low frequency pure sine wave hybrid inverter

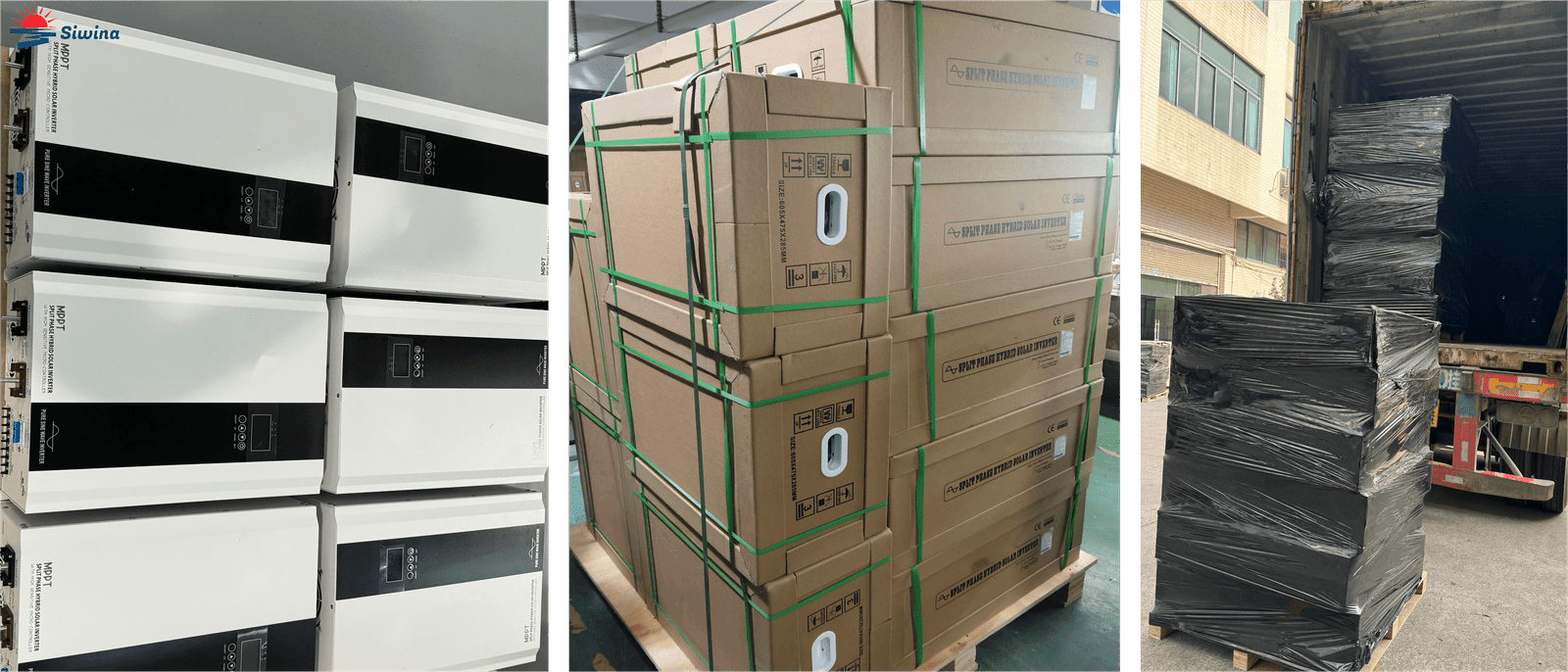

.Quality Assurance: Our products undergo rigorous quality control checks to ensure they meet the highest reliability and performance standards.
1. The circuit board is carefully inspected and debugged twice
2. The product is assembled and tested to meet the parameters required by the customer
3. Long-term aging for 5 hours to ensure that all parameters, load capacity and functions of the machine meet the standards. Long-term use testing can better ensure whether the temperature protection and overload protection of the machine can meet the standards
4. Confirmation test before packaging

.Technical Support: Our technical team with more than 15 years of industry experience provides comprehensive technical support and solution design to help you choose products and product solutions that suit your customer needs and solve any problems that may arise.

.Customization Options:
We provide OEM and ODM services to meet specific design requirements, such as chassis appearance, color, packaging, etc., allowing you to customize our products according to the exact specifications of customers.

Model1000W1500W2000W3000W4000W5000W6000W8000W10000W12000W
Inverter InputRated capacity1000W1500W2000W3000W4000W5000W6000W8000W10000W12000W
peak power3000W4500W6000W9000W12000W15000W18000W24000W30000W36000W
Commercial Power range110VAC:83V-137VAC 120VAC:90V-150VAC220VAC:176V-264VAC
220VAC:165V-275VAC 230VAC:173V-287VAC230VAC:184V-276VAC
AC frequency range45-65HZ
Efficiency>85%
MPPT SolarMPPT Solar controller 30A / 50A50A/60A/80A80A /100A/120A
Solar input power360W/720W/1200Wv1200W/1440W/2400W2880W/3840W3840W/4800W/5760W/9600W
Solar input voltage(max)12VDC/24VDC:90V12VDC/24VDC:130V 48VDC:160V 96VDC: 280V
BatteryTypelead-acid battery GEL battery lithium battery
DC Voltage12VDC /24VDC/48VDC24VDC/48VDC48VDC/96VDC
Input voltage range12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC
Floating charge set12V:12.9 ~ 13.6 V 24V:25.8V~27.2V 48V:51.6V~54.4V 96V:103.2V~108.8V
Low voltage restored12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC
Low voltage shutdown set12VDC:10-10.9V 24VDC:20-21.8V 48VDC:40-43.6V 96VDC:80V-87.2V
over voltage protection12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V
over voltage alarm12VDC:15VDC 24VDC:30V 48VDC:60V
AC charging5A-35A(40A, 50A, 60A,70A Optional)
Inverter OutputCapable of starting electric motor0.5HP1HP1.5HP2HP3HP
AVR voltage range(VAC)110/120/220/230/240±10%(Auto-sensing)Without
Power factor100%
Transfer timeTypical:5ms(Including detection time)
Temperature protection≥85℃ alarm ≥90℃ machine shut off
overloadIPS automatically shut down if overload exceeds 110%-120% of normal value for 30 seconds, IPS automatically resume work if overload comes to rated load.
Wave formPure sine wave
FrequencyCommercial power supply: shared frequency with the commercial inversion state:60/50±0.5
Output frequency rangeTracking automatically
(electric supply mode)
ProtectionOverload, short circuit, battery high and low voltage, AC input high and low voltage protection
Conversion method Interactive
temperatureOperating Temperature0℃~70℃
Thermal methodCooling fan in intelligent control≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
AppearanceExternal Size(mm)510*295*225mm680*295*225mm765*320*250mm
(L*W*H)
Gross Size(mm)550*350*255mm740*360*275mm830*380*310mm
(L*W*H)
Net weight(kg)14151820313435525456
Gross weight(kg)16172022353738565860
