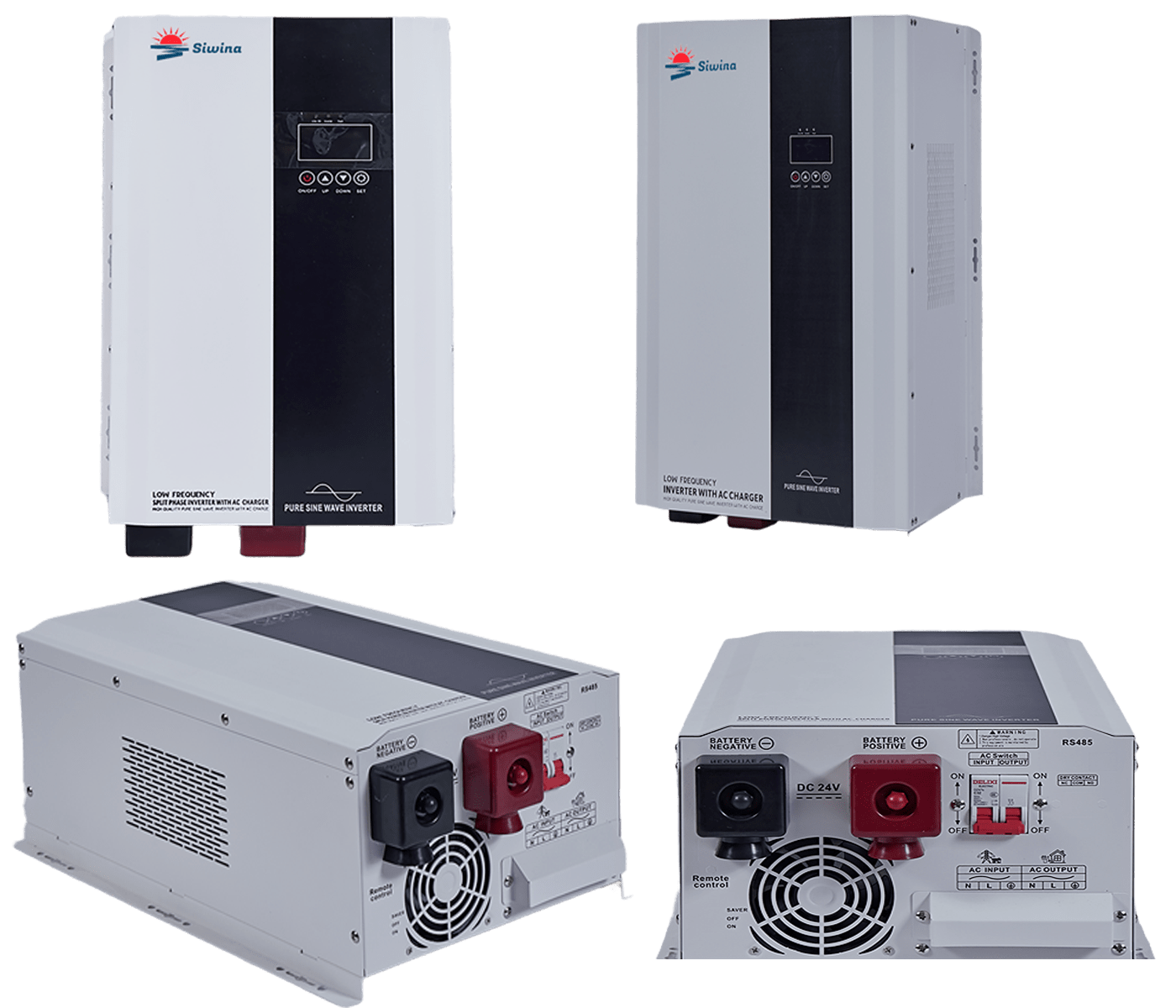

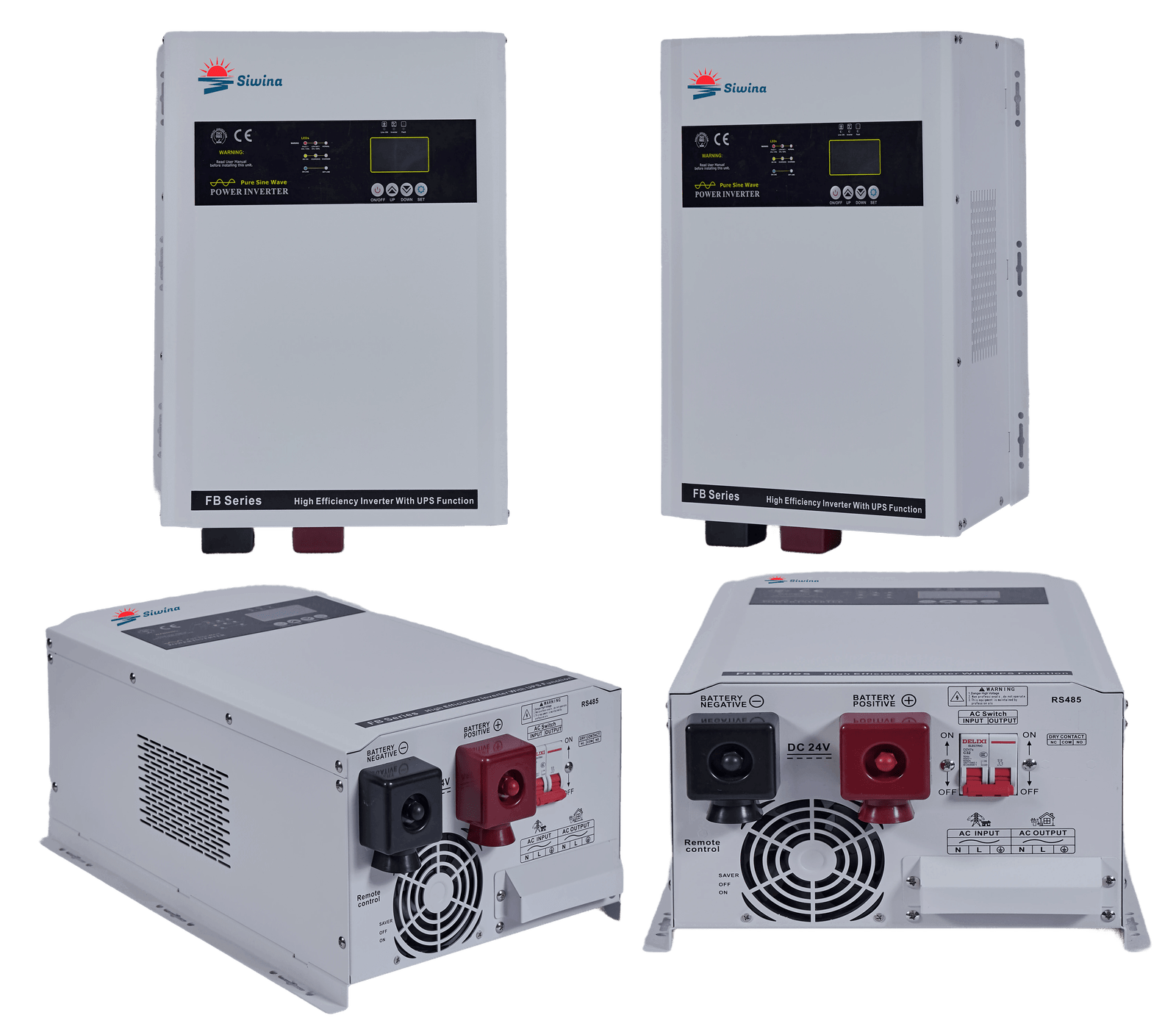

8KW 10KW 12KW Pure Sine Wave Low Frequency Inverter

8KW10KW12KW 48VDC 96VDC Low-frequency Pure sine wave inverter with AC charger ups function,Suitable for large commercial buildings, factories, large residential buildings and other places that require high-power power supply. DC to AC Auto provide stable and reliable power to these places, ensuring that equipment can still operate normally during power outages.

Additional information

color

White/blue/Green/orange

AC input

110VAC/120VAC/220VAC/230VAC/240VAC(option)

AC output

110VAC/120VAC/220VAC/230VAC/240VAC(option)

DC Voltage(Battery )

48VDC or 96VDC

product details


1.Stability and Reliability:
They can adapt well to different types of loads, including inductive loads and capacitive loads, which makes them more flexible in various application scenarios.For example, application scenarios that require continuous power supply, such as hospitals, factories, and data centers.

2.Full Protection Features:
With comprehensive protection features, including overload protection, short-circuit protection, over-voltage protection, and more, our inverters ensure the safety of connected devices and the inverter itself.

3. UPS Functionality: The UPS functionality allows for uninterrupted power supply, making our inverters ideal for critical applications where downtime is not an option(DC To ACAuto).

4.Built-in Big AC Charging: The built-in AC charging feature adds convenience and flexibility, allowing users to charge their batteries directly from the inverter.

How to choose the appropriate inverter power?

8KW inverter:

.Purpose: 8KW inverter is suitable for medium-sized applications such as small and medium-sized commercial buildings, small factories and medium-sized residential buildings. They can provide stable and reliable power to these places to meet daily power needs.
.Advantages: The 8KW inverter has high power output and can power multiple devices at the same time, making it suitable for places with larger power demands. Their comprehensive protection functions ensure the safe operation of equipment and buildings.

10KW inverter:

.Purpose: 10KW inverter is suitable for large commercial buildings, factories, large residential buildings and other places that require high-power power supply. They can provide stable and reliable power to these places and meet the needs of high-power equipment.
.Advantages: 10KW inverter has higher power output and can meet the needs of large buildings and equipment. Their comprehensive protection features and optional UPS functionality ensure equipment remains operational during power outages.

12KW inverter:

.Purpose: 12KW inverter is suitable for high-power power supply needs of very large buildings, factories and other large facilities. They can provide stable and reliable power to these places and meet the needs of various high-power equipment.
.Advantages: The 12KW inverter has the highest power output and can power multiple high-power devices at the same time to ensure the normal operation of buildings and equipment. Their comprehensive protection features and high-efficiency MPPT solar controllers further enhance their reliability and performance.
LOW FREQUENCY INVERTER

8kw 10kw 12kw pure sine wave low frequency inverter
8kw 10kw 12kw pure sine wave low frequency inverter

LOW FREQUENCY INVERTER

LOW FREQUENCY INVERTER

LOW FREQUENCY INVERTER

.Quality Assurance: Our products undergo rigorous quality control checks to ensure they meet the highest standards of reliability and performance.

.Technical Support: We offer comprehensive technical support to assist you in selecting the right products for your customers’ needs and to resolve any issues that may arise.

.Customization Options: We offer OEM and ODM services to meet specific design requirements, allowing you to tailor our products to your customers’ exact specifications.

Technical Data Sheet:

Model1000W1500W2000W3000W4000W5000W6000W8000W10000W12000W
InputRated capacity1000W1500W2000W3000W4000W5000W6000W8000W10000W12000W
peak power3000W4500W6000W9000W12000W15000W18000W24000W30000W36000W
Commercial Power range110VAC:83V-137VAC 120VAC:90V-150V220VAC:176V-264VAC
220VAC:165V-275VAC 230VAC:173V-287V230VAC:184V-276V
AC frequency range45-65HZ
BatteryTypelead-acid battery / GEL battery / lithium battery
DC Voltage12 VDC /24VDC24VDC/48VDC48VDC/96VDC
Input voltage range12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC 96VDC:84-120VDC
Floating charge set12.9 ~ 13.6 V(1PCS battery) can be set
Low voltage restored12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC
Low voltage shutdon set12VDC:10-10.9V 24VDC:20-21.8V 48VDC:40-43.6V 96VDC:80V-87.2V
over voltage protection12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V
over voltage alarm12VDC:15VDC 24VDC:30V 48VDC:60V
ChargerAC charging5A-30A(40A, 50A, 60A,70A Optional)
OutputCapable of starting electric motor0.5HP1HP1.5HP2HP3HP
AVR voltage range(VAC)110/120/220/230/240±10%(Auto-sensing)Without
Transfer timeTypical:5ms(Including detection time)
Temperature protection≥85℃ alarm ≥90℃ machine shut off
overloadIPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load.
WaveformPure sine wave
FrequencyCommercial power supply: shared frequency with the commercial inversion state:60/50±0.5
Output frequency rangeTracking automatically
(electric supply mode)
temperatureOperating Temperature0℃~70℃
Thermal methodCooling fan in intelligent control≤42℃ fan rotates slowly to ≥45℃ fan rotates fast
AppearanceExternal Size(mm)510*295*225mm680*295*225mm765*320*250mm
(L*W*H)
Gross Size(mm)550*350*255mm740*360*275mm830*380*310mm
(L*W*H)
Net weight(kg)13141719262728475052
Gross weight(kg)16172022293031515456
