high-quality low-frequency 110VAC /220VAC 120VAC/240VAC output split-phase inverter is the perfect choice. Designed to meet the unique needs of households in countries such as Colombia, Venezuela, Haiti, Dominica, Honduras, Ecuador, Guatemala, and America that use split-phase inverters are common. These inverters are used to convert direct current into alternating current and are suitable for residential power systems with 110VAC/220VAC or 120/240V.
| color | White/blue/Green/orange |
|---|---|
| AC input | 110VAC/220VAC/120VAC/240VAC |
| AC output | 110VAC 220VAC or 120VAC 240VAC |
| DC Voltage（Battery ） | 48VDC or 96VDC |
Product Introduction: Low-Frequency Dual Output Split-Phase Inverter for South America and America
Are you looking for a reliable and efficient power solution for your home in South America and America? Our high-quality low-frequency dual output split-phase inverter is the perfect choice. Designed to meet the unique needs of households in countries such as Colombia, Venezuela, Haiti, Dominica, Honduras, Ecuador, Guatemala, and America that use split-phase inverters are common. These inverters are used to convert direct current into alternating current and are suitable for residential power systems with 110VAC/220VAC or 120/240V. In the U.S. inverter offers unmatched stability and superior load capacity.

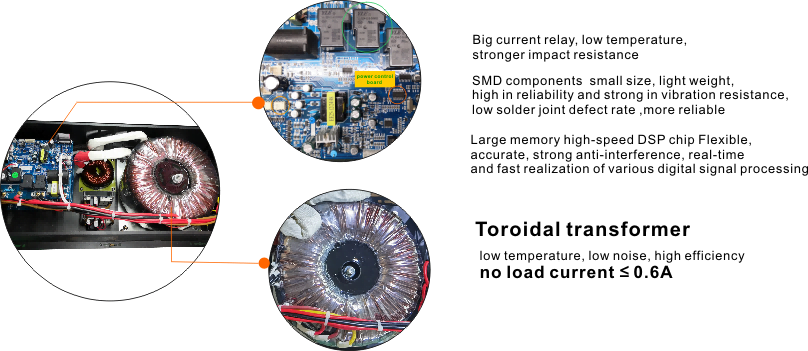

Stability and Superior Load Capacity: Our inverter products are built using low-frequency transformers, ensuring stable and reliable power output for a wide range of applications This design allows for a stronger ability to withstand impact and a higher loading capacity compared to standard inverters. are engineered to provide a stable and reliable power supply Whether you need power for hospitals, supermarkets, offices, RVs, or outdoor setups, our inverters deliver consistent performance.
Efficient Power Conversion: With high efficiency, our inverter can convert DC power from solar panels or battery banks to AC power with minimal loss. This efficiency not only saves you money on energy bills but also reduces your carbon footprint.

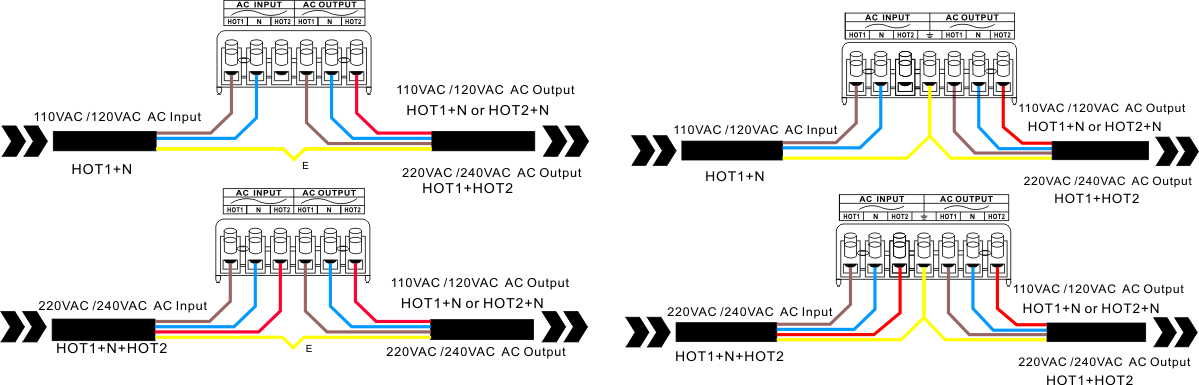

Dual Output Split-Phase Design: The unique design of our inverter provides two separate output phases, ideal for homes with 120/240V pure sine wave low-frequency split-phase inverters. This design ensures compatibility and efficiency in residential settings.
User-Friendly Features: Installation and operation are made easy with our inverter. It’s designed to be user-friendly, allowing you to start enjoying the benefits of clean, reliable power in no time.
Safety First: The split phase inverter is equipped with a range of safety features, including over-voltage protection, overload protection, and short circuit protection, ensuring the safety of both your appliances and the inverter itself.

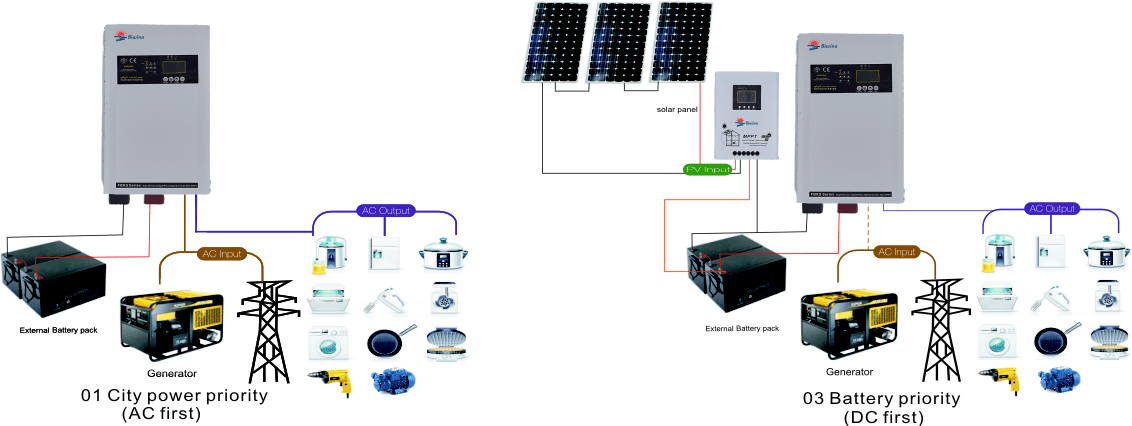

UPS Functionality: For critical applications where downtime is not an option, the split-phase inverters offer UPS functionality. This means you can enjoy uninterrupted power supply, even during power outages. Our pure sine wave inverter charger features a 4-stage battery charger, optimally and automatically charging your batteries to 100%.
Wide Range of Power Options: These split-phase inverters are available in various power options, ranging from 1kW to 12kW. This allows you to choose the right power capacity to meet your specific requirements.

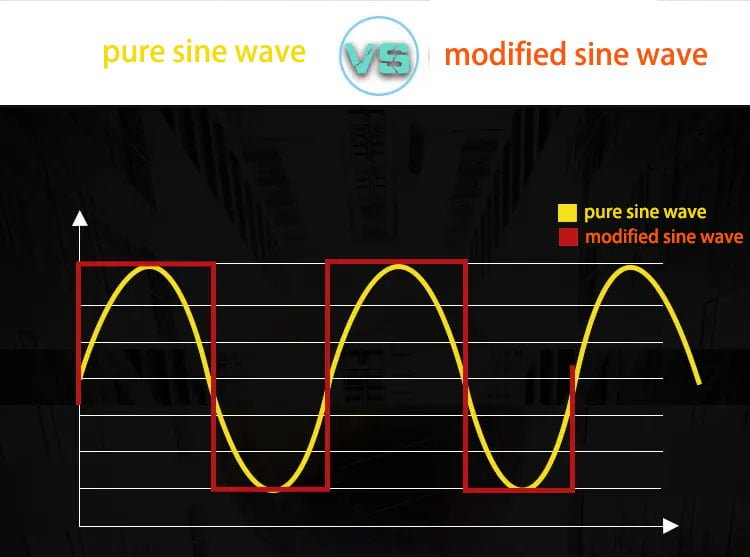

Pure Sine Wave Output and Built-in AC Charger: provide a pure sine wave output, ensuring compatibility with sensitive electronic devices. Additionally, they come with a built-in AC charger, allowing you to charge your batteries directly from the grid.
Programmable Operations: The split phase inverters offer full programmability, with over 23 customizable features. You can adjust the input/output voltage range, battery charging current, and other settings to suit your specific needs.
Say goodbye to power outages and hello to uninterrupted power for your home. Choose our high-quality low-frequency dual output split-phase inverter for a reliable and efficient power solution in South America and America.
With our split-phase inverters, you can enjoy a stable and reliable power supply, backed by comprehensive protection features and UPS functionality. Choose the power capacity that suits your requirements and experience the reliability and versatility of our inverters for your power needs.
Efficient Power Conversion
With high efficiency, can convert DC power from solar panels or battery banks to AC power with minimal loss. This efficiency not only saves you money on energy bills but also reduces your carbon footprint. By harnessing the power of renewable energy sources, you can enjoy clean and sustainable power for your home.
Dual Output Split-Phase Design
Unique dual output split-phase design, making it ideal for homes with 120/240V split-phase systems. This design mimics the power supply in residential settings, ensuring compatibility and efficiency. Whether you have multiple appliances or need to power different areas of your home, our inverter can handle the task with ease.

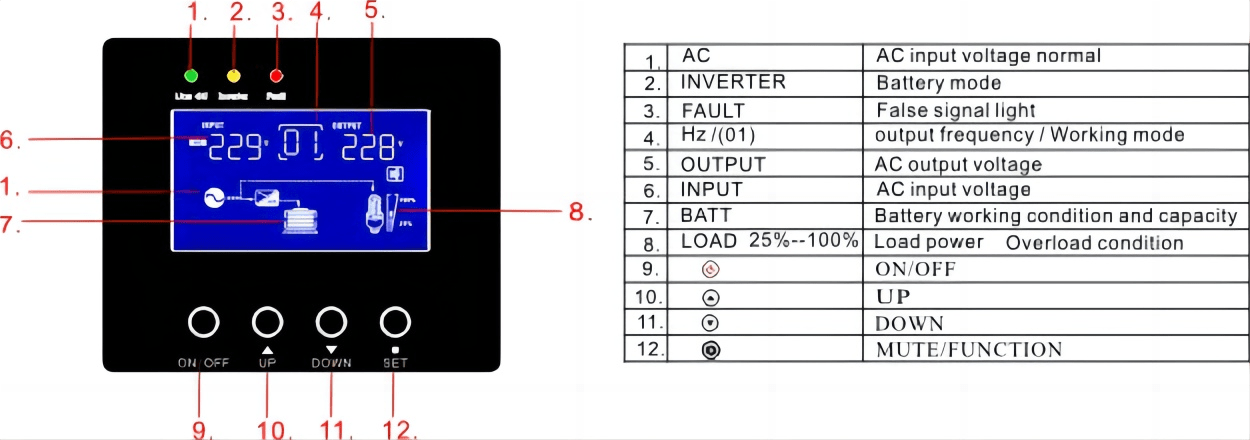

LCD Interface
The LCD display on our inverters provides a convenient way to monitor and control your system. It displays AC input and output voltage and frequency, battery voltage and capacity, load power, solar voltage and current, and more. You can easily switch between using city power or solar power to charge the battery, ensuring continuous power supply.
Programmable Operations
Our inverters offer full programmability, with over 23 customizable features. You can adjust input/output voltage range, battery charging current, and other settings to suit your specific needs.
Safety First
We prioritize safety, which is why our inverter comes equipped with a range of safety features. These include over-voltage protection, overload protection, and short circuit protection. You can have peace of mind knowing that both your appliances and the inverter itself are protected from potential electrical hazards.

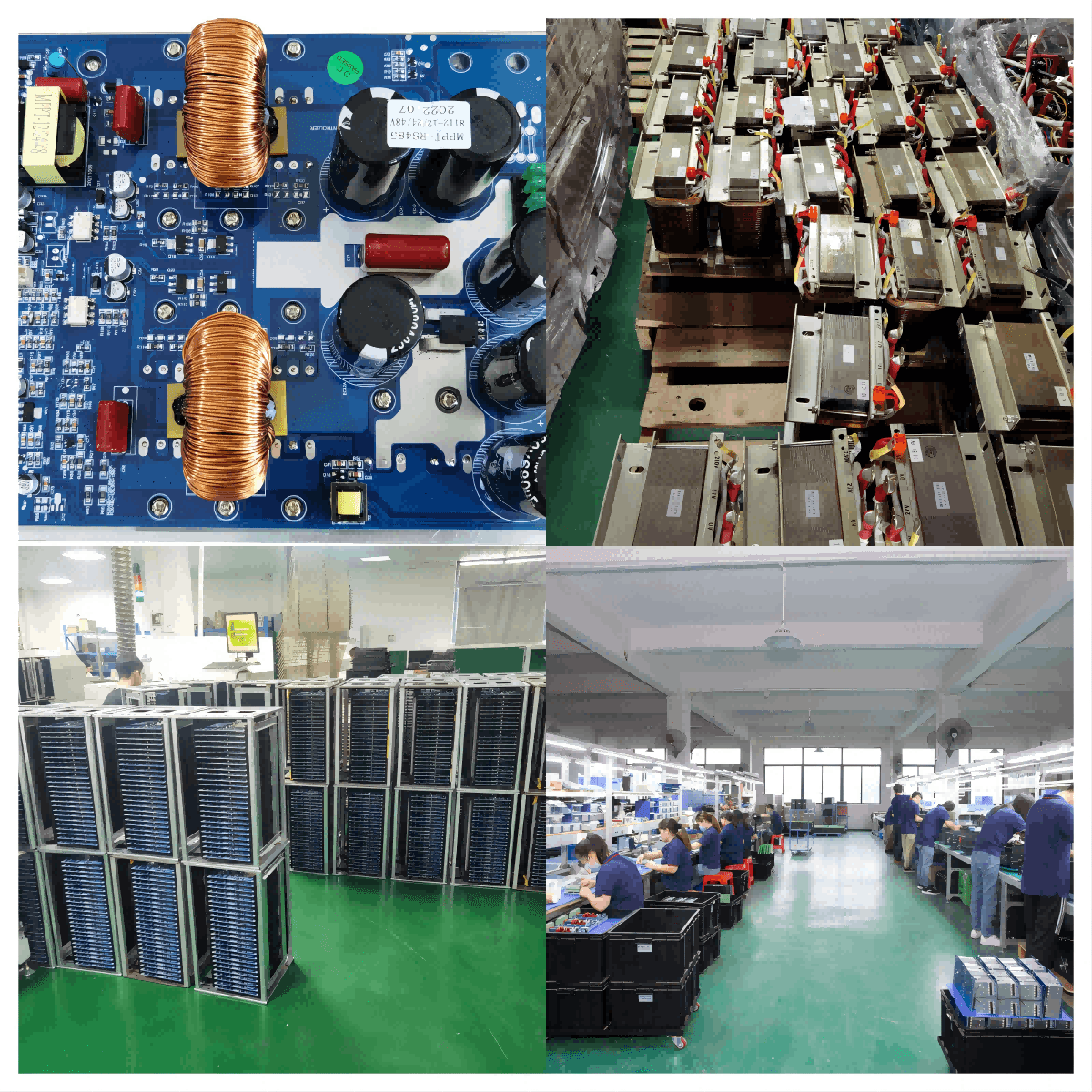

Quality Assurance:
Undergo rigorous quality control checks to ensure they meet the highest standards of reliability and performance.dedicated to using the highest quality materials and components in our products. We believe in the importance of quality and carefully select raw materials while adhering to strict quality control measures. Our commitment to excellence is reflected in our certifications, including CE, IEC, FCC, and technical patent design certificates.
Installation and operation are a breeze with our user-friendly design. We have designed our inverter to be intuitive and easy to use, so you can start enjoying the benefits of clean, reliable power in no time. Say goodbye to power outages and hello to uninterrupted power for your home.
Overall, our high-quality low-frequency dual output split-phase inverter is the perfect choice for homeowners who value reliability, efficiency, and ease of use. Whether you are looking to power your home in the United States or countries in South and Central America, our inverter is tailored to meet your specific needs. Invest in a power solution that will keep your household running smoothly and efficiently.
Technical Data Sheet：
| Model | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input | Rated capacity | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| peak power | 3000W | 4500W | 6000W | 9000W | 12000W | 15000W | 18000W | 24000W | 30000W | 36000W | |
| Commercial Power range | 110VAC:83V-137VAC 120VAC:90V-150V | 220VAC:176V-264VAC | |||||||||
| 220VAC:165V-275VAC 240VAC:173V-287V | 240VAC:184V-276V | ||||||||||
| AC frequency range | 45-65HZ | ||||||||||
| Battery | Type | Lead-acid battery GEL battery Lithium battery | |||||||||
| DC Voltage | 12 VDC /24VDC | 24VDC/48VDC | 48VDC | ||||||||
| Input voltage range | 12VDC:10.5-15VDC 24VDC:21-30VDC 48VDC:42-60VDC | ||||||||||
| Floating charge set | 12.9 ～ 13.6 V(1PCS battery) can be set | ||||||||||
| Low voltage restored | 12VDC:12.6-14.4VDC 24VDC:25.2-28.8VDC 48VDC:50.4-57.6VDC 96VDC:100.8-115.2VDC | ||||||||||
| Low voltage shutdown set | 12VDC:10-10.9V 24VDC:20-21.8V 48VDC:40-43.6V | ||||||||||
| over voltage protection | 12VDC:16.7VDC 24VDC:33.4V 48VDC:66.8V | ||||||||||
| over voltage alarm | 12VDC:15VDC 24VDC:30V 48VDC:60V | ||||||||||
| Charger | AC charging | 5A-30A(40A, 50A, 60A,70A Optional） | |||||||||
| Output | Capable of starting electric motor | 0.5HP | 1HP | 1.5HP | 2HP | 3HP | |||||
| Voltage range（VAC） | 110VAC/220VAC ,120VAC/240VAC±10%（Auto-sensing） | 110VAC/220VAC ,120VAC/240VAC±10%（Auto-sensing） | |||||||||
| Transfer time | Typical：10ms(Including detection time) | ||||||||||
| Temperature protection | ≥85℃ alarm ≥90℃ machine shut off | ||||||||||
| overload | IPS automatically shut down if overload exceeds 120% of normal value for 10 seconds, IPS automatically resume work if overload comes to rated load. | ||||||||||
| Waveform | Pure sine wave | ||||||||||
| Commercial power supply: shared frequency with the commercial inversion state:60/50±0.5 | |||||||||||
| Output frequency range | Tracking automatically | ||||||||||
| (electric supply mode) | |||||||||||
| temperature | Operating Temperature | 0℃~50℃ | |||||||||
| Thermal method | Cooling fan in intelligent control≤42℃ fan rotates slowly to ≥45℃ fan rotates fast | ||||||||||
| Appearance | External Size(mm) | 510*295*225mm | 680*295*225mm | 765*320*250mm | |||||||
| （L*W*H） | |||||||||||
| Gross Size(mm) | 550*350*255mm | 740*360*275mm | 830*380*310mm | ||||||||
| （L*W*H） | |||||||||||
| Net weight(kg) | 13 | 14 | 17 | 19 | 26 | 27 | 28 | 47 | 50 | 52 | |
| Gross weight(kg) | 16 | 17 | 20 | 22 | 29 | 30 | 31 | 51 | 54 | 56 | |
FAQ
Q1: Can I have a sample/trial order for a test?
A: Yes, we accept sample orders/trial orders for testing. You can experience the quality and performance of our products before making a larger investment.
Q2: When will you deliver the goods?
A: For sample orders, we typically deliver within 3-5 working days. For quantity orders, it may take 7-15 working days after receiving the deposit payment. We strive to deliver your order promptly and efficiently.
Q3: Do you offer a guarantee for your solar products?
A: Yes, we offer an 18-month guarantee for our inverters and inverter-related products, including solar generators and solar inverters.
Q4: Can you do OEM/ODM?
A: Yes, we accept OEM/ODM orders for power inverters, solar inverters, Hybrid inverter ,MPPT solar controllers, solar generators. Simply send us your detailed request, and our sales specialist will provide you with the best quote tailored to your needs.
