The Swina MPPT Solar Charge Controller is the perfect upgrade for any solar system, offering unparalleled efficiency, safety, and flexibility. With its advanced technology and robust features, it ensures optimal performance and long-term reliability.
| color | White/blue/Green/orange |
|---|
Swina MPPT Solar Charge Controller Product Description
The SwinaSolar MPPT Charge Controller by Swina is designed to optimize solar energy harvesting, ensuring efficient and rapid battery charging. This advanced controller not only maximizes energy capture but also maintains and extends battery life, making it a vital component for any solar power system.
Features
Ultra-Fast Maximum Power Point Tracking (MPPT)
By continuously monitoring the voltage and current output of solar panels, the Swnina Solar controller MPPT technology extracts every available watt of power, particularly in fluctuating light conditions.
Battery Health Maintenance
Swina Solar not only charges batteries quickly but also ensures their longevity by maintaining optimal charging conditions. It can even recharge batteries with a voltage as low as 0 Volts, provided they are not permanently damaged.

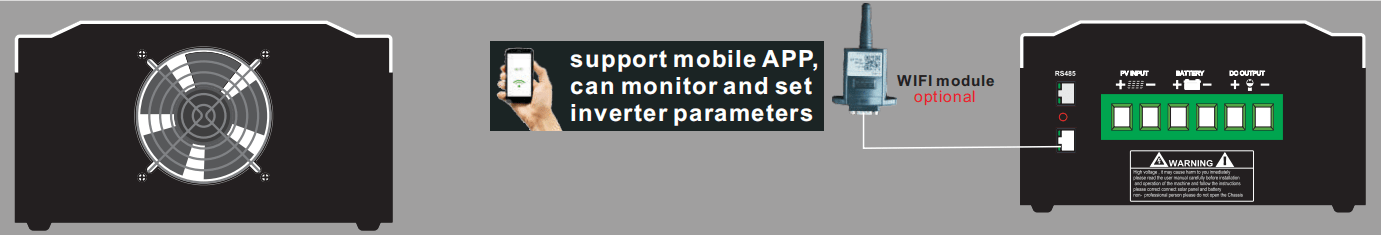

Support Remote Monitoring and Control(optional)
Equipped can built-in Bluetooth and WIFI connectivity, the Swina MPPT Solar controller can be paired with your smartphone or other devices. The APP portal allows for comprehensive remote management, offering access to all controller features anytime, anywhere.
Enhanced Safety with Insulated Casing
Protection Features: Overcharge protection, short-circuit protection, overload protection, high-low voltage protection, over-temperature protection, under-voltage protection, overvoltage protection
High-quality insulation materials offer maximum protection against electrical hazards, ensuring a safe and reliable charging process.
Multiple Battery Compatibility
Compatible with various battery types, including Lithium, Gel, AGM, conventional lead-acid (wet), and LTO batteries, the controller ensures flexible use across different setups.
Electronic Protections
The controller features 8 electronic protections that actively monitor voltage, current, and load changes to prevent overcharging, back-flow electrical currents, and other potential issues.

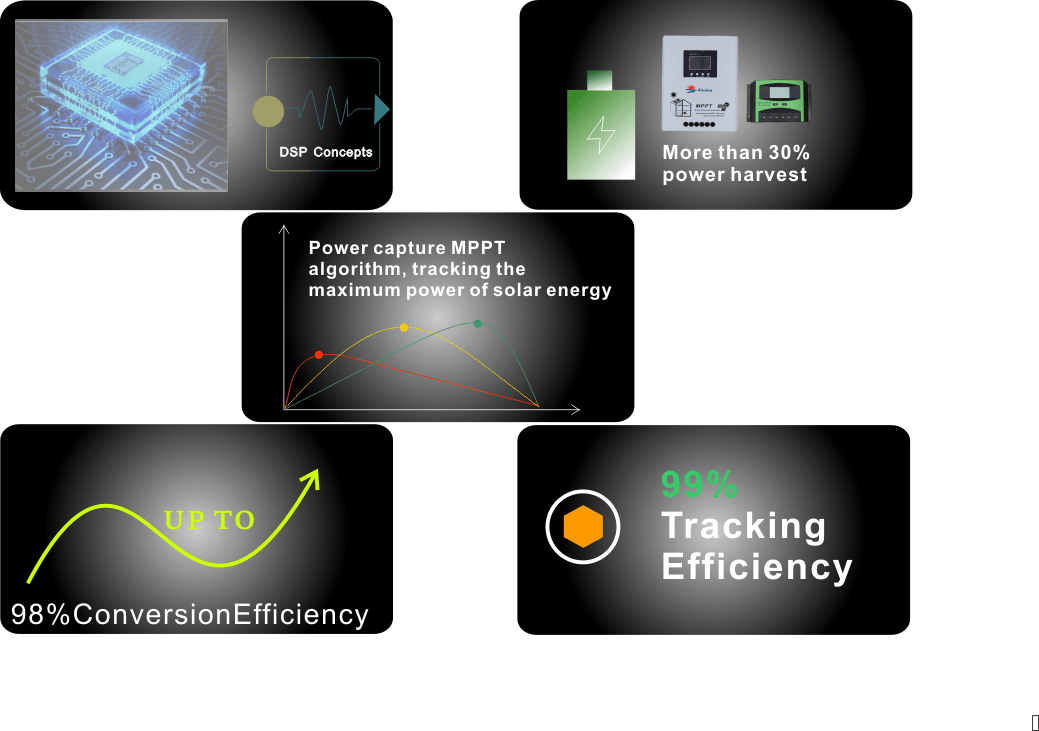

Benefits of MPPT
Increased Efficiency
The MPPT system can enhance charging efficiency by up to 30% over traditional PWM systems, especially during less-than-ideal weather conditions like cloudy or shorter winter days.
Battery Protection
Prevents overcharging and extends battery life, while protecting solar panels from potential back-flow electrical currents.
Monitoring and Display
Digital Display
The large digital display provides real-time information on battery voltage, charging current, charging capacity, battery types, full charge status, and system faults, offering a quick visual reference for operational status and battery conditions.
Customizable Options
Tailored to meet specific needs, the Swina MPPT Solar Charge Controller can be customized in terms of technology, design, and packaging to suit various user requirements.
Technical Specifications

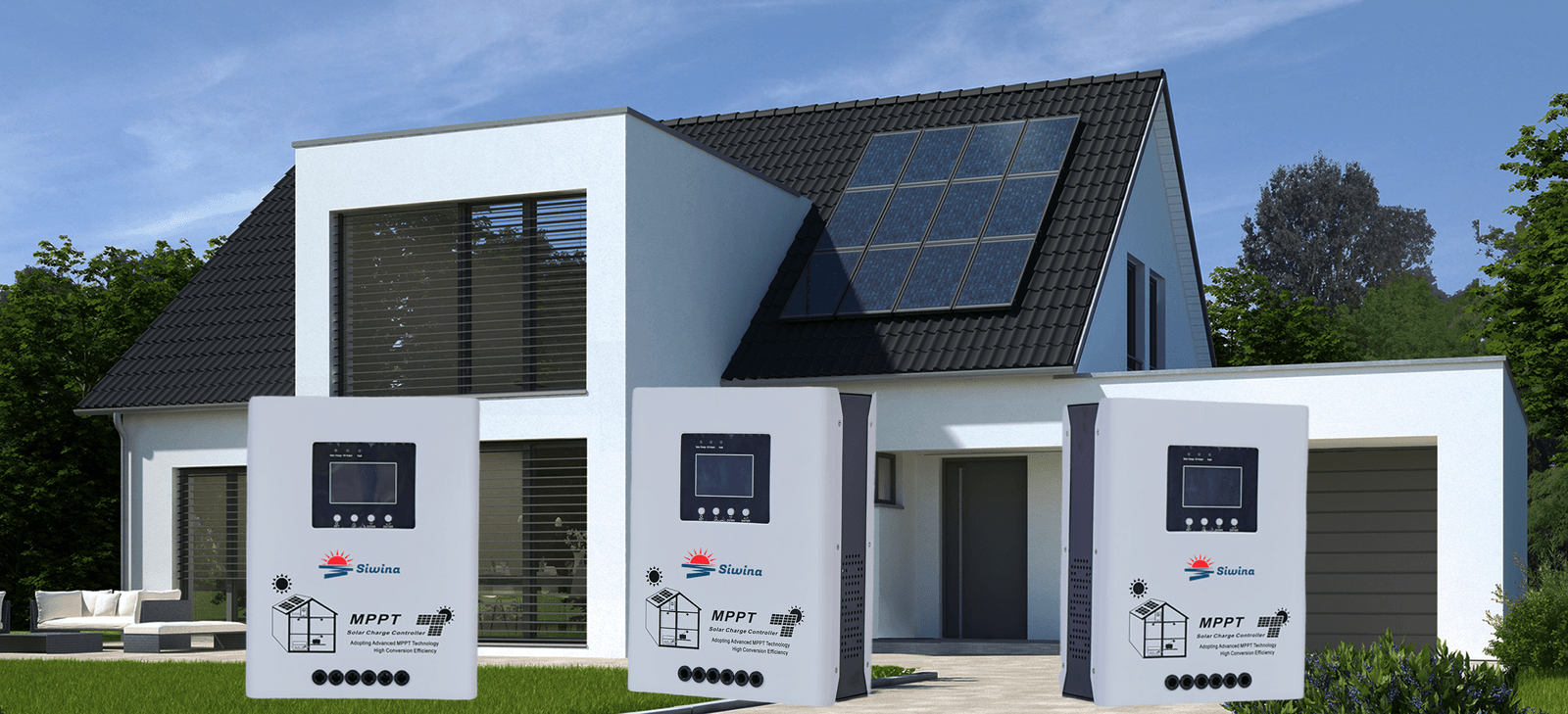

Available Models: 40A, 60A, 80A, 100A
| Model | 30A | 40A | 30A | 40A | 50A | 60A | 80A | 100AB | 100A | 120A | 150A | 100A | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| System voltage | 12V/24V | 12V/24V/48V | 48V/96V | ||||||||||
| Solar Input | 405W/810W | 540W /1080W | 405W/ 810W /1620W | 540W/ 1080W /2160W | 675W/ 1350W /2700W | 810W/ 1620W /3240W | 1080W/ 2160W /4320W | 1350W/2700W /5400W | 1350W/2700W /5400W | 1620W/3240W /6480W | 2025W/4050W /8100W | 5400W/ 10800W | |
| Charging type | MPPT automatic maximum power point tracking. | ||||||||||||
| Charging mode | fast charging, absorption charging, Pulse charging | ||||||||||||
| System mode | DC12V/24V automatic | DC12V/24V/48V automatic | DC48V/96V automatic | ||||||||||
| Efficiency | 98% | ||||||||||||
| Battery voltage range | 9V-16V(12VDC) | ||||||||||||
| 18V-30V(24VDC) | |||||||||||||
| 36V-60V（48VDC) | |||||||||||||
| 72V-120V（96VDC) | |||||||||||||
| PV INPUT | |||||||||||||
| Operating voltage and range | 90VDC | 14-130VDC（12V SYSTEM) 38-130VDC（24V SYSTEM) 72-160VDC（48V SYSTEM) 144-280VDC（96V SYSTEM) | |||||||||||
| Low voltage protection | 16V（12V SYSTEM) 30V（24V SYSTEM) 60V（48V SYSTEM) 120V （96V SYSTEM) | ||||||||||||
| Low pressure recovery | 22V（12V SYSTEM) 34V（24V SYSTEM) 65V（48V SYSTEM) 130V（96V SYSTEM) | ||||||||||||
| Overvoltage protection | 135V（12V/24V SYSTEM) 160V（48V SYSTEM) 280V（96V SYSTEM) | ||||||||||||
| Charging characteristics | |||||||||||||
| Selectable battery type | Lead-acid battery, GEL battery ,ithium battery | ||||||||||||
| Undervoltage shutdown | 10.2V(12VDC)/20.4V(24VDC)/40.8V(48VDC)/81.6V(96VDC) | ||||||||||||
| Undervoltage recovery | 11.5V(12VDC)/23V(24VDC)/46V(48VDC)/92V(96VDC) | ||||||||||||
| Battery overcharge protection | 14V(12VDC)/28V(24VDC)/56V(48VDC)/112V(96VDC) | ||||||||||||
| Charging current | 30A | 40A | 30A | 40A | 50A | 60A | 80A | 100A | 100A | 120A | 150A | 100A | |
| Over temperature alarm | 75℃ | ||||||||||||
| Over temperature recovery | 65℃ | ||||||||||||
| Size (MM) | 230*166*72 | 250*170*87 | 270*189*105 | 330*253*125 | 305*299*153 | ||||||||
| Packing size(MM) | 520*380*335（16PCS） | 470*308*395（6PCS) | 490*328*440（6PCS） | 400*338*392 (2PCS） | 470*360*210（1PCS） | ||||||||
| Packing Weight（KG) | 22.5 | 12.5KG | 19 | 19 | 20 | 10.5 | 10 | ||||||
